6424.0251.12
ActiveSCHURTER Inc.

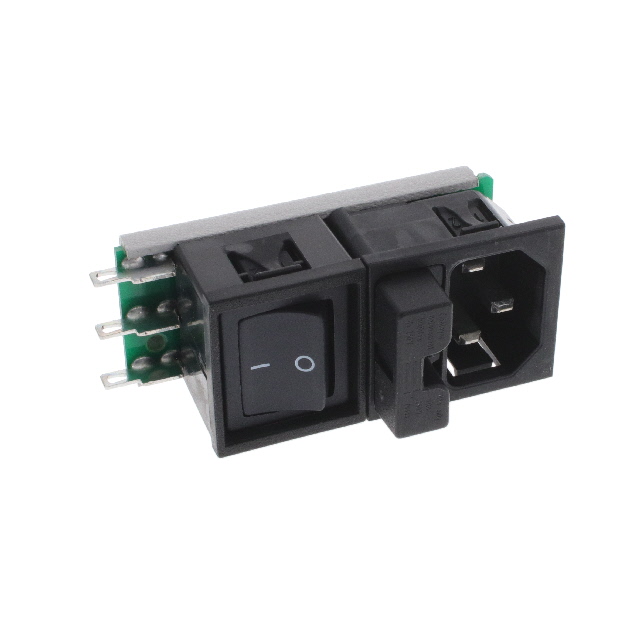

IEC 60320 CONNECTOR FELCOM 64 POWER ENTRY MODULE 10A C14
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6424.0251.12
ActiveSCHURTER Inc.
IEC 60320 CONNECTOR FELCOM 64 POWER ENTRY MODULE 10A C14
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6424.0251.12 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, ENEC, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.6 mm |
| Panel Cutout Dimensions [y] | 57 mm |
| Panel Thickness | 1.2 mm |
| Panel Thickness | 0.047 " |
| Switch Features | Switch On-Off |
| Termination | Solder Eyelet |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
6424.0251 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
