6424.0251.20
ActiveSCHURTER Inc.

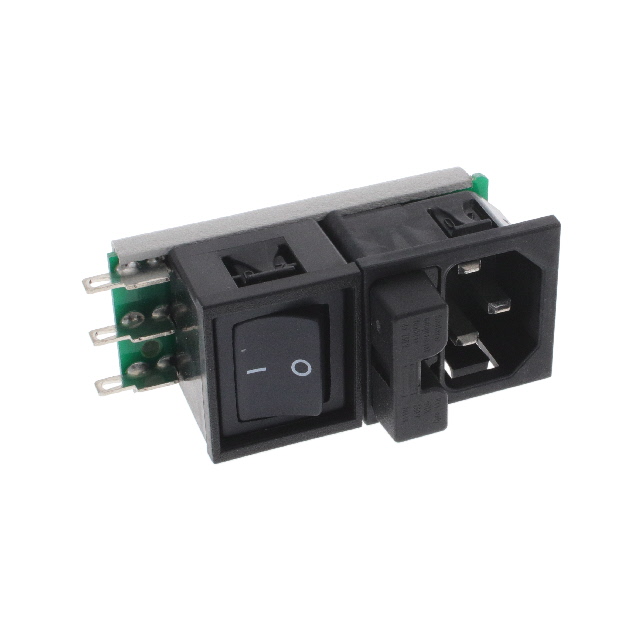

PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6424.0251.20
ActiveSCHURTER Inc.
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6424.0251.20 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | UL, ENEC, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 27.6 mm |
| Panel Cutout Dimensions [y] | 57 mm |
| Panel Thickness | 2 mm |
| Panel Thickness | 0.079 in |
| Switch Features | Switch On-Off |
| Termination | Solder Eyelet |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 38.65 | |
| 50 | $ 32.92 | |||
| 100 | $ 29.72 | |||
Description
General part information
6424.0251 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
Documents
Technical documentation and resources
