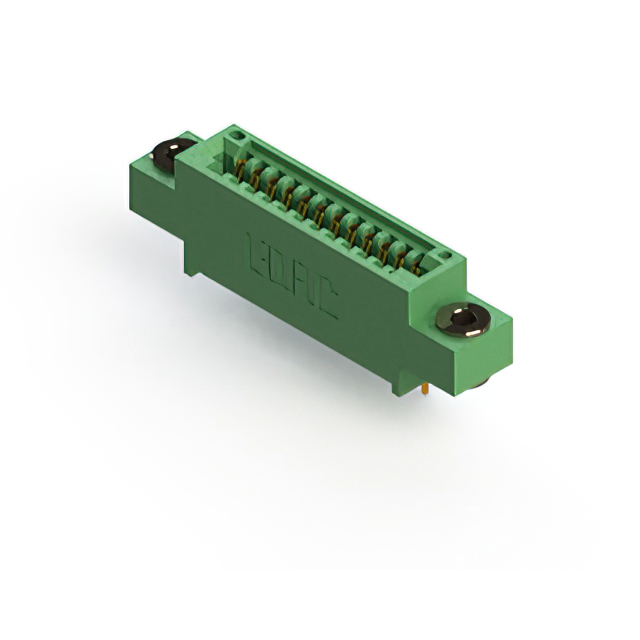

345-012-542-603
ActiveEDAC Inc.
2.54MM STRAIGHT 12P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-012-542-603
ActiveEDAC Inc.
2.54MM STRAIGHT 12P -40℃~+105℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-012-542-603 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, Floating Bobbin |
| Flange Feature [diameter] | 2.95 mm |
| Flange Feature [diameter] | 0.116 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
345-012 Series
...
| Part | Material - Insulation | Color | Flange Feature | Flange Feature | Pitch [x] | Pitch [x] | Contact Finish | Termination Rows | Card Type | Read Out | Contact Material | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Number of Positions/Bay/Row [custom] | Gender | Number of Positions | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Polyester Thermoplastic | Green | 3.25 mm | 0.128 in | 2.54 mm | 0.1 in | Gold | 1 | Non Specified - Single Edge | Single | Copper Alloy | Through Hole | 10 Áin | 0.25 Ám | 1 | 12 | Female | 12 | Solder | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | ||||
EDAC Inc. | Polyester Thermoplastic | Green | 2.54 mm | 0.1 in | Gold | 2 | Non Specified - Dual Edge | Dual | Copper Alloy | Through Hole | 10 Áin | 0.25 Ám | 2 | 6 | Female | 12 | Solder | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | |||
EDAC Inc. | Polyester Thermoplastic | Green | 2.54 mm | 0.1 in | Gold | 1 | Non Specified - Single Edge | Single | Copper Alloy | Through Hole | 10 Áin | 0.25 Ám | 1 | 12 | Female | 12 | Wire Wrap | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | |||
EDAC Inc. | Polyester Thermoplastic | Green | 2.54 mm | 0.1 in | Gold | 2 | Non Specified - Dual Edge | Dual | Copper Alloy | Through Hole | 10 Áin | 0.25 Ám | 2 | 6 | Female | 12 | Wire Wrap | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | |||||
EDAC Inc. | Polyester Thermoplastic | Green | 2.54 mm | 0.1 in | Gold | 1 | Non Specified - Single Edge | Single | Copper Alloy | Through Hole Right Angle | 10 Áin | 0.25 Ám | 1 | 12 | Female | 12 | Solder | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||||
EDAC Inc. | Polyester Thermoplastic | Green | 2.54 mm | 0.1 in | Gold | 2 | Non Specified - Dual Edge | Dual | Copper Alloy | Through Hole | 10 Áin | 0.25 Ám | 2 | 6 | Female | 12 | Solder | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | Card Guides | ||||
EDAC Inc. | Polyester Thermoplastic | Green | 3.25 mm | 0.128 in | 2.54 mm | 0.1 in | Gold | 1 | Non Specified - Single Edge | Single | Copper Alloy | Through Hole | 10 Áin | 0.25 Ám | 1 | 12 | Female | 12 | Solder | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | |||
EDAC Inc. | Polyester Thermoplastic | Green | 2.54 mm | 0.1 in | Gold | 2 | Non Specified - Dual Edge | Dual | Copper Alloy | Through Hole | 10 Áin | 0.25 Ám | 2 | 6 | Female | 12 | Solder | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | |||
EDAC Inc. | Polyester Thermoplastic | Green | 2.54 mm | 0.1 in | Gold | 2 | Non Specified - Dual Edge | Dual | Copper Alloy | Through Hole | 10 Áin | 0.25 Ám | 2 | 6 | Female | 12 | Solder | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | |||
EDAC Inc. | Polyester Thermoplastic | Green | 2.54 mm | 0.1 in | Gold | 2 | Non Specified - Dual Edge | Dual | Copper Alloy | Through Hole | 10 Áin | 0.25 Ám | 2 | 6 | Female | 12 | Solder | -40 °C | 105 ░C | Cantilever | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-012 Series
12 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
