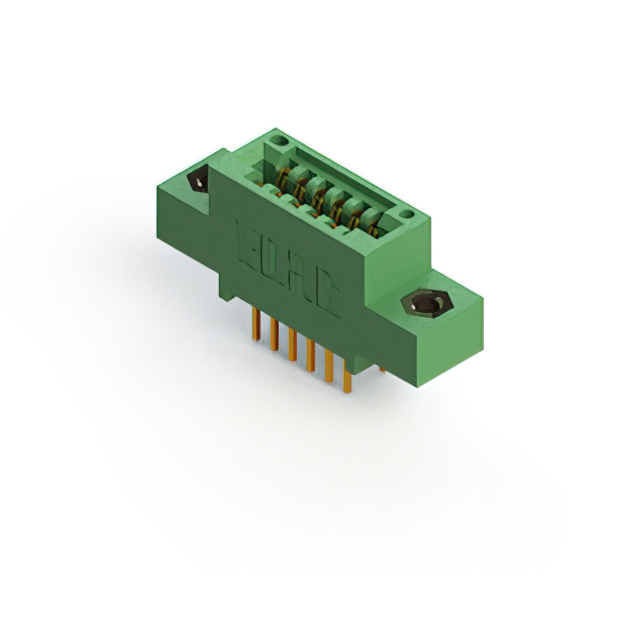

345-012-541-507

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

345-012-541-507

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 12 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-012-541-507

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	M3, Threaded Insert, Top Mount Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	12
Number of Positions/Bay/Row [custom]	6
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

345-012 Series

...

Part	Material - Insulation	Color	Flange Feature	Flange Feature	Pitch [x]	Pitch [x]	Contact Finish	Termination Rows	Card Type	Read Out	Contact Material	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions/Bay/Row [custom]	Gender	Number of Positions	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Features
EDAC Inc. 345-012-521-402	Polyester Thermoplastic	Green	3.25 mm	0.128 in	2.54 mm	0.1 in	Gold	1	Non Specified - Single Edge	Single	Copper Alloy	Through Hole	10 Áin	0.25 Ám	1	12	Female	12	Solder	-40 °C	105 ░C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in
EDAC Inc. 345-012-524-803	Polyester Thermoplastic	Green			2.54 mm	0.1 in	Gold	2	Non Specified - Dual Edge	Dual	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2	6	Female	12	Solder	-40 °C	105 ░C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 345-012-542-603	Polyester Thermoplastic	Green			2.54 mm	0.1 in	Gold	1	Non Specified - Single Edge	Single	Copper Alloy	Through Hole	10 Áin	0.25 Ám	1	12	Female	12	Wire Wrap	-40 °C	105 ░C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 345-012-541-507	Polyester Thermoplastic	Green			2.54 mm	0.1 in	Gold	2	Non Specified - Dual Edge	Dual	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2	6	Female	12	Wire Wrap	-40 °C	105 ░C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		M3 Threaded Insert Top Mount Opening
EDAC Inc. 345-012-559-458	Polyester Thermoplastic	Green			2.54 mm	0.1 in	Gold	1	Non Specified - Single Edge	Single	Copper Alloy	Through Hole Right Angle	10 Áin	0.25 Ám	1	12	Female	12	Solder	-40 °C	105 ░C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Threaded Insert Top Mount Opening		Card Guides
EDAC Inc. 345-012-521-258	Polyester Thermoplastic	Green			2.54 mm	0.1 in	Gold	2	Non Specified - Dual Edge	Dual	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2	6	Female	12	Solder	-40 °C	105 ░C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		4-40 Flush Mount Threaded Insert Top Opening		Card Guides
EDAC Inc. 345-012-524-412	Polyester Thermoplastic	Green	3.25 mm	0.128 in	2.54 mm	0.1 in	Gold	1	Non Specified - Single Edge	Single	Copper Alloy	Through Hole	10 Áin	0.25 Ám	1	12	Female	12	Solder	-40 °C	105 ░C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		Side Mount Opening Unthreaded
EDAC Inc. 345-012-525-202	Polyester Thermoplastic	Green			2.54 mm	0.1 in	Gold	2	Non Specified - Dual Edge	Dual	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2	6	Female	12	Solder	-40 °C	105 ░C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 345-012-521-503	Polyester Thermoplastic	Green			2.54 mm	0.1 in	Gold	2	Non Specified - Dual Edge	Dual	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2	6	Female	12	Solder	-40 °C	105 ░C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 345-012-521-207	Polyester Thermoplastic	Green			2.54 mm	0.1 in	Gold	2	Non Specified - Dual Edge	Dual	Copper Alloy	Through Hole	10 Áin	0.25 Ám	2	6	Female	12	Solder	-40 °C	105 ░C	Cantilever	1.37 mm	0.054 "	1.78 mm	0.07 in		Flush Mount M3 Threaded Insert Top Opening

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 10.00
Newark	Each	25	$ 15.75
		50	$ 15.24
		100	$ 14.23
		250	$ 13.72
		500	$ 12.96

Description

General part information

345-012 Series

12 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
