AZ822-2C-9DSE

Active

American Zettler

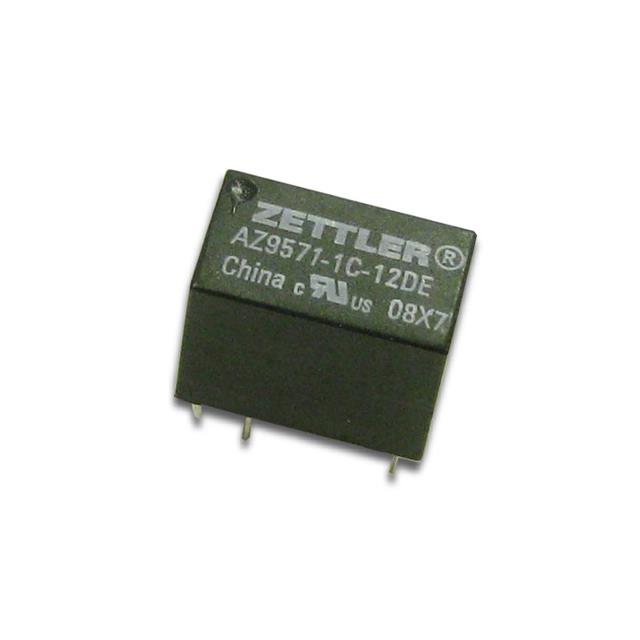

RELAY GENERAL PURPOSE DPDT 2A 9V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ822-2C-9DSE

Active

American Zettler

RELAY GENERAL PURPOSE DPDT 2A 9V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AZ822-2C-9DSE

Approval Agency	UL, cUR
Coil Current	16.7 mA
Coil Type	Non Latching
Coil Voltage	9 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	60 W, 125 VA
Mounting Type	Through Hole
Must Operate Voltage	6.3 VDC
Must Release Voltage	0.45 VDC
Operate Time	5 ms
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	2 ms
Seal Rating	Sealed - Fully
Switching Voltage	250 VAC, 220 VDC
Termination Style	PC Pin

AZ822 Series

Part	Coil Type	Switching Voltage	Load - Max Switching	Must Release Voltage	Approval Agency	Contact Material	Contact Form	Relay Type	Mounting Type	Coil Resistance	Coil Voltage	Termination Style	Contact Rating (Current)	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Seal Rating	Must Operate Voltage	Operate Time	Coil Current
American Zettler AZ822-2C-12DSE	Non Latching	220 VDC 250 VAC	440 W 500 VA	0.6 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole	960 Ohms	12 VDC	PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	8.4 VDC	5 ms
American Zettler AZ8222-2C-9DME	Non Latching	120 VDC 240 VAC	240 W 480 VA	0.9 VDC	cUR UL	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	General Purpose	Through Hole	280 Ohms	9 VDC	PC Pin	2 A	4 ms	70 °C	-40 °C	Sealed - Fully	6.8 VDC	7 ms	32.1 mA
American Zettler AZ8222-2C-48DME	Non Latching	120 VDC 240 VAC	240 W 480 VA	4.8 VDC	cUR UL	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	General Purpose	Through Hole	4 kOhms	48 VDC	PC Pin	2 A	4 ms	70 °C	-40 °C	Sealed - Fully	36 VDC	7 ms	12 mA
American Zettler AZ822-2C-24DE	Non Latching	220 VDC 250 VAC	440 W 500 VA	1.2 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole	2.88 kOhms	24 VDC	PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	16.8 VDC	5 ms	8.3 mA
American Zettler AZ8222-2C-9DSSE	Non Latching	120 VDC 240 VAC	240 W 480 VA	0.9 VDC	cUR UL	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	General Purpose	Through Hole		9 VDC	PC Pin	2 A	4 ms	85 °C	-40 °C	Sealed - Fully	7.2 VDC	7 ms	16.7 mA
American Zettler AZ822-2C-12DE	Non Latching	220 VDC 250 VAC	440 W 500 VA	0.6 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole	720 Ohms	12 VDC	PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	8.4 VDC	5 ms	16.7 mA
American Zettler AZ822-2C-3DSE	Non Latching	220 VDC 250 VAC	440 W 500 VA	0.15 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole	60 Ohms		PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	2.1 VDC	5 ms	50 mA
American Zettler AZ8222-2C-6DSE	Non Latching	120 VDC 240 VAC	240 W 480 VA	0.6 VDC	cUR UL	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	General Purpose	Through Hole	180 Ohms		PC Pin	2 A	4 ms	80 C	-40 °C	Sealed - Fully	4.5 VDC	7 ms	33.3 mA
American Zettler AZ822-2C-24DSE	Non Latching	220 VDC 250 VAC	440 W 500 VA	1.2 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole	3.84 kOhms	24 VDC	PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	16.8 VDC	5 ms	6.25 mA
American Zettler AZ822-2C-9DSE	Non Latching	220 VDC 250 VAC	60 W 125 VA	0.45 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole		9 VDC	PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	6.3 VDC	5 ms	16.7 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.44
		10	$ 1.29
		25	$ 1.23
		50	$ 1.19
		100	$ 1.15
		250	$ 1.10
		450	$ 1.06
		950	$ 1.02
		4900	$ 0.94

Description

General part information

AZ822 Series

General Purpose Relay DPDT (2 Form C) Through Hole

Documents

Technical documentation and resources
