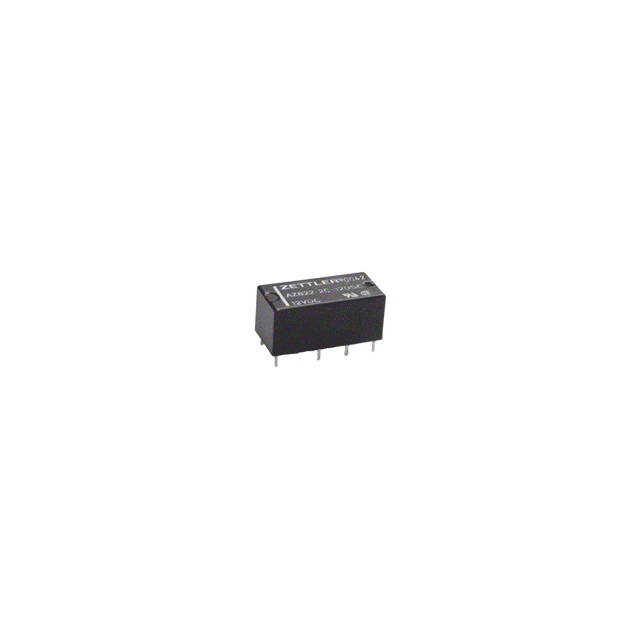

AZ822-2C-24DE

Active

American Zettler

RELAY GEN PURPOSE DPDT 2A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AZ822-2C-24DE

Active

American Zettler

RELAY GEN PURPOSE DPDT 2A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AZ822-2C-24DE

Approval Agency	UL, cUR
Coil Current	8.3 mA
Coil Resistance	2.88 kOhms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Palladium (AgPd), Gold (Au)
Contact Rating (Current)	2 A
Load - Max Switching	440 W, 500 VA
Mounting Type	Through Hole
Must Operate Voltage	16.8 VDC
Must Release Voltage	1.2 VDC
Operate Time	5 ms
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-55 °C
Relay Type	General Purpose
Release Time	2 ms
Seal Rating	Sealed - Fully
Switching Voltage	250 VAC, 220 VDC
Termination Style	PC Pin

AZ822 Series

Part	Coil Type	Switching Voltage	Load - Max Switching	Must Release Voltage	Approval Agency	Contact Material	Contact Form	Relay Type	Mounting Type	Coil Resistance	Coil Voltage	Termination Style	Contact Rating (Current)	Release Time	Operating Temperature [Max]	Operating Temperature [Min]	Seal Rating	Must Operate Voltage	Operate Time	Coil Current
American Zettler AZ822-2C-12DSE	Non Latching	220 VDC 250 VAC	440 W 500 VA	0.6 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole	960 Ohms	12 VDC	PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	8.4 VDC	5 ms
American Zettler AZ8222-2C-9DME	Non Latching	120 VDC 240 VAC	240 W 480 VA	0.9 VDC	cUR UL	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	General Purpose	Through Hole	280 Ohms	9 VDC	PC Pin	2 A	4 ms	70 °C	-40 °C	Sealed - Fully	6.8 VDC	7 ms	32.1 mA
American Zettler AZ8222-2C-48DME	Non Latching	120 VDC 240 VAC	240 W 480 VA	4.8 VDC	cUR UL	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	General Purpose	Through Hole	4 kOhms	48 VDC	PC Pin	2 A	4 ms	70 °C	-40 °C	Sealed - Fully	36 VDC	7 ms	12 mA
American Zettler AZ822-2C-24DE	Non Latching	220 VDC 250 VAC	440 W 500 VA	1.2 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole	2.88 kOhms	24 VDC	PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	16.8 VDC	5 ms	8.3 mA
American Zettler AZ8222-2C-9DSSE	Non Latching	120 VDC 240 VAC	240 W 480 VA	0.9 VDC	cUR UL	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	General Purpose	Through Hole		9 VDC	PC Pin	2 A	4 ms	85 °C	-40 °C	Sealed - Fully	7.2 VDC	7 ms	16.7 mA
American Zettler AZ822-2C-12DE	Non Latching	220 VDC 250 VAC	440 W 500 VA	0.6 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole	720 Ohms	12 VDC	PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	8.4 VDC	5 ms	16.7 mA
American Zettler AZ822-2C-3DSE	Non Latching	220 VDC 250 VAC	440 W 500 VA	0.15 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole	60 Ohms		PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	2.1 VDC	5 ms	50 mA
American Zettler AZ8222-2C-6DSE	Non Latching	120 VDC 240 VAC	240 W 480 VA	0.6 VDC	cUR UL	Gold (Au) Silver Nickel (AgNi)	DPDT (2 Form C)	General Purpose	Through Hole	180 Ohms		PC Pin	2 A	4 ms	80 C	-40 °C	Sealed - Fully	4.5 VDC	7 ms	33.3 mA
American Zettler AZ822-2C-24DSE	Non Latching	220 VDC 250 VAC	440 W 500 VA	1.2 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole	3.84 kOhms	24 VDC	PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	16.8 VDC	5 ms	6.25 mA
American Zettler AZ822-2C-9DSE	Non Latching	220 VDC 250 VAC	60 W 125 VA	0.45 VDC	cUR UL	Gold (Au) Silver Palladium (AgPd)	DPDT (2 Form C)	General Purpose	Through Hole		9 VDC	PC Pin	2 A	2 ms	90 °C	-55 °C	Sealed - Fully	6.3 VDC	5 ms	16.7 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.74
		10	$ 1.52
		25	$ 1.44
		50	$ 1.38
		100	$ 1.33
		250	$ 1.26
		500	$ 1.21
		1000	$ 1.16
		5000	$ 1.05

Description

General part information

AZ822 Series

General Purpose Relay DPDT (2 Form C) Through Hole
