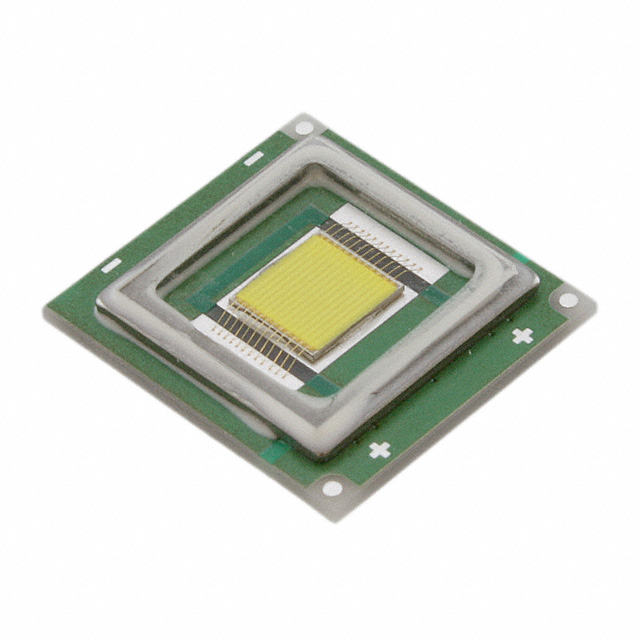

SBT-90-WDLS-F71-NB150

Active

Luminus Devices Inc.

LED SBT-90 70CRI 2SMD

Search across all available documentation for this part.

Active

Luminus Devices Inc.

LED SBT-90 70CRI 2SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SBT-90-WDLS-F71-NB150

Color	White
CRI (Color Rendering Index)	70
Current - Max [Max]	9 A
Current - Test	9 A
Flux @ 25°C, Current - Test	1770 lm
Flux @ 25°C, Current - Test [Max]	1830 lm
Flux @ 25°C, Current - Test [Min]	1710 lm
Lumens/Watt @ Current - Test	59 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead Exposed Pad
Size / Dimension [x]	11 mm
Size / Dimension [x]	0.433 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Thermal Resistance of Package [custom]	0.64 °C/W
Voltage - Forward (Vf) (Typ)	3.5 V

Part	Color	Package / Case	Voltage - Forward (Vf) (Typ)	Wavelength [Min]	Wavelength [Max]	Wavelength	Mounting Type	Luminous Flux @ Current/Temperature	Thermal Resistance of Package [custom]	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Max [Max]	Supplier Device Package	Current - Test	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	CCT (K)
Luminus Devices Inc. SBT-90-R-F75-HM100	Red	0404	2.7 V	615 nm	627 nm	621 nm	Surface Mount	1350 lm	0.64 °C/W	37 lm/W	11 mm	0.433 in	10 mm	0.394 in	13.5 A	SMD	13.5 A
Luminus Devices Inc. SBT-90-W57S-F71-NB202
Luminus Devices Inc. SBT-90-R-F75-HK101	Red	0404	2.7 V			621 nm	Surface Mount	1350 lm	0.64 °C/W	37 lm/W	11 mm	0.433 in	10 mm	0.394 in	13.5 A	SMD	13.5 A
Luminus Devices Inc. SBT-90-R-F75-HM101	Red	0404	2.7 V			621 nm	Surface Mount	1350 lm	0.64 °C/W	37 lm/W	11 mm	0.433 in	10 mm	0.394 in	13.5 A	SMD	13.5 A
Luminus Devices Inc. SBT-90-W57S-F71-NB200	Cool White	2-SMD No Lead Exposed Pad	3.5 V				Surface Mount				10 mm	0.394 "	11 mm	0.433 in	13.5 A		9 A	70	1830 lm	1770 lm	1710 lm	5700 K
Luminus Devices Inc. SBT-90-WDLS-F71-NB150	White	2-SMD No Lead Exposed Pad	3.5 V				Surface Mount		0.64 °C/W	59 lm/W	11 mm	0.433 in	10 mm	0.394 in	9 A		9 A	70	1830 lm	1770 lm	1710 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 51.51

General part information

LED Lighting SBT-90 White 3.5V 9A 2-SMD, No Lead Exposed Pad
