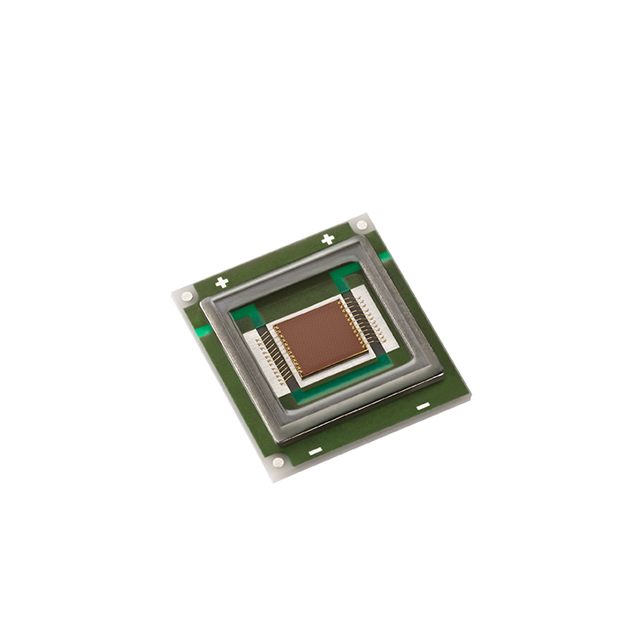

SBT-90-R-F75-HK101

Active

Luminus Devices Inc.

LED SBT90 RED 621NM SMD

Search across all available documentation for this part.

Active

Luminus Devices Inc.

LED SBT90 RED 621NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SBT-90-R-F75-HK101

Color	Red
Current - Max [Max]	13.5 A
Current - Test	13.5 A
Lumens/Watt @ Current - Test	37 lm/W
Luminous Flux @ Current/Temperature	1350 lm
Mounting Type	Surface Mount
Package / Case	0404
Size / Dimension [x]	11 mm
Size / Dimension [x]	0.433 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	0.64 °C/W
Voltage - Forward (Vf) (Typ)	2.7 V
Wavelength	621 nm

Part	Color	Package / Case	Voltage - Forward (Vf) (Typ)	Wavelength [Min]	Wavelength [Max]	Wavelength	Mounting Type	Luminous Flux @ Current/Temperature	Thermal Resistance of Package [custom]	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Max [Max]	Supplier Device Package	Current - Test	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	CCT (K)
Luminus Devices Inc. SBT-90-R-F75-HM100	Red	0404	2.7 V	615 nm	627 nm	621 nm	Surface Mount	1350 lm	0.64 °C/W	37 lm/W	11 mm	0.433 in	10 mm	0.394 in	13.5 A	SMD	13.5 A
Luminus Devices Inc. SBT-90-W57S-F71-NB202
Luminus Devices Inc. SBT-90-R-F75-HK101	Red	0404	2.7 V			621 nm	Surface Mount	1350 lm	0.64 °C/W	37 lm/W	11 mm	0.433 in	10 mm	0.394 in	13.5 A	SMD	13.5 A
Luminus Devices Inc. SBT-90-R-F75-HM101	Red	0404	2.7 V			621 nm	Surface Mount	1350 lm	0.64 °C/W	37 lm/W	11 mm	0.433 in	10 mm	0.394 in	13.5 A	SMD	13.5 A
Luminus Devices Inc. SBT-90-W57S-F71-NB200	Cool White	2-SMD No Lead Exposed Pad	3.5 V				Surface Mount				10 mm	0.394 "	11 mm	0.433 in	13.5 A		9 A	70	1830 lm	1770 lm	1710 lm	5700 K
Luminus Devices Inc. SBT-90-WDLS-F71-NB150	White	2-SMD No Lead Exposed Pad	3.5 V				Surface Mount		0.64 °C/W	59 lm/W	11 mm	0.433 in	10 mm	0.394 in	9 A		9 A	70	1830 lm	1770 lm	1710 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 56.42

General part information

LED Lighting Color SBT-90 Red 621nm (619nm ~ 623nm) 0404 (1010 Metric)
