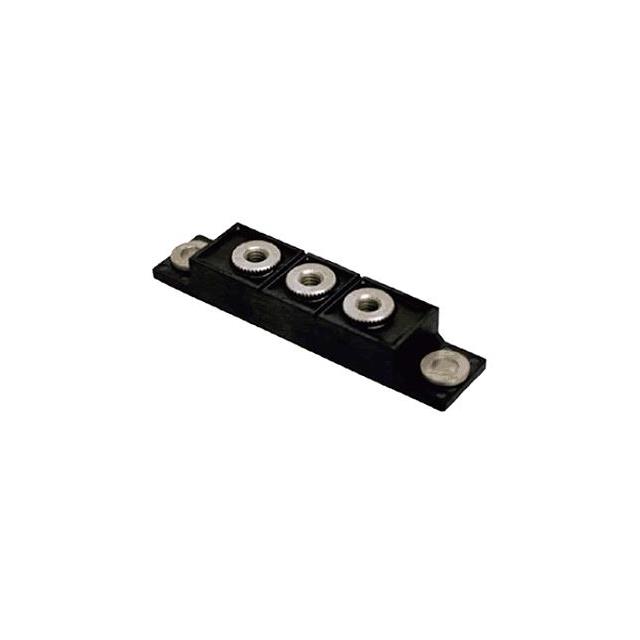

BKA400AA10

Active

SanRex Corporation

100V 1 PAIR OF COMMON CATHODES 930MV@400A 400A SCHOTTKY DIODES ROHS

Search across all available documentation for this part.

Active

SanRex Corporation

100V 1 PAIR OF COMMON CATHODES 930MV@400A 400A SCHOTTKY DIODES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	BKA400AA10

Current - Average Rectified (Io) (per Diode)	400 A
Current - Reverse Leakage @ Vr	140 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	200 mA, 500 ns
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V

Part	Speed	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Mounting Type	Diode Configuration	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Package / Case
SanRex Corporation BKR400AB10	200 mA 500 ns	40 mA	150 °C	-40 °C	Schottky	Chassis Mount	1 Pair Common Cathode	100 V	400 A	Module
SanRex Corporation BKA400AA10	200 mA 500 ns	140 mA	150 °C	-40 °C	Schottky	Chassis Mount	1 Pair Common Cathode	100 V	400 A	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode Array 1 Pair Common Cathode 100 V 400A Chassis Mount Module
