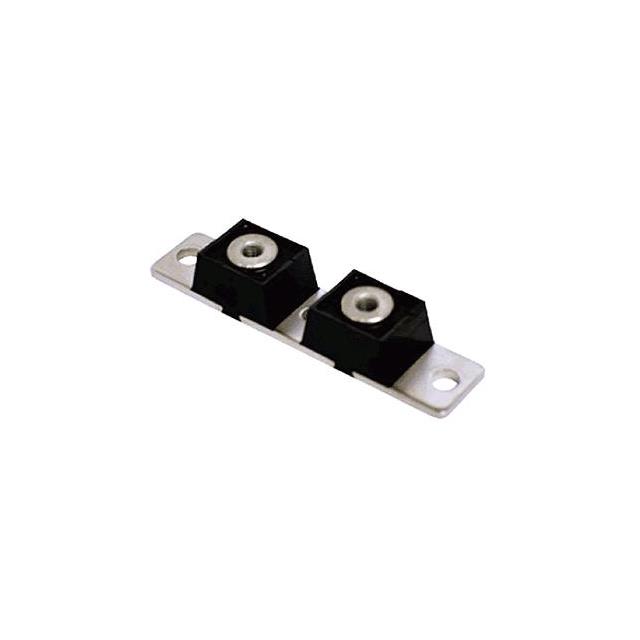

BKR400AB10

Active

SanRex Corporation

DIODE MODULE SCHOTT 100V 400A

Search across all available documentation for this part.

Active

SanRex Corporation

DIODE MODULE SCHOTT 100V 400A

Technical Specifications

Parameters and characteristics for this part

Specification	BKR400AB10

Current - Average Rectified (Io) (per Diode)	400 A
Current - Reverse Leakage @ Vr	40 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-40 °C
Package / Case	Module
Speed	200 mA, 500 ns
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	100 V

Part	Speed	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Technology	Mounting Type	Diode Configuration	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io) (per Diode)	Package / Case
SanRex Corporation BKR400AB10	200 mA 500 ns	40 mA	150 °C	-40 °C	Schottky	Chassis Mount	1 Pair Common Cathode	100 V	400 A	Module
SanRex Corporation BKA400AA10	200 mA 500 ns	140 mA	150 °C	-40 °C	Schottky	Chassis Mount	1 Pair Common Cathode	100 V	400 A	Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	15	$ 50.18

General part information

Diode Array 1 Pair Common Cathode 100 V 400A Chassis Mount Module
