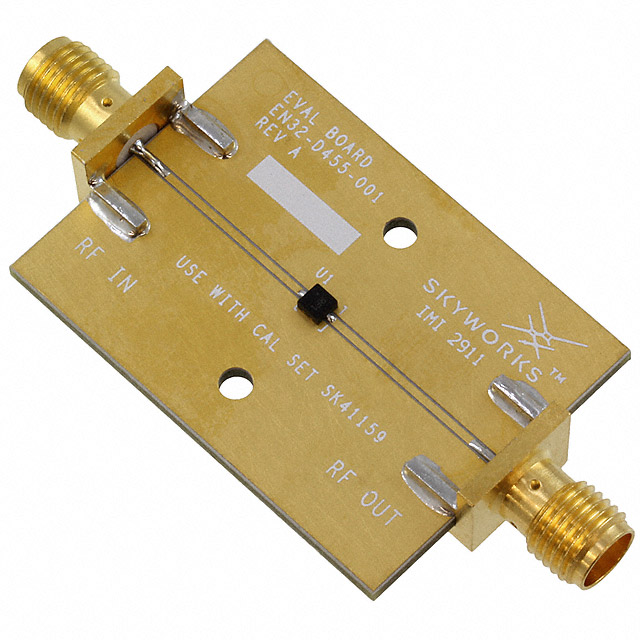

SMP1302-085LF-EVB

Active

Skyworks Solutions Inc.

EVAL BOARD FOR SMP1302-085LF

Search across all available documentation for this part.

Active

Skyworks Solutions Inc.

EVAL BOARD FOR SMP1302-085LF

Technical Specifications

Parameters and characteristics for this part

Part	Resistance @ If, F	Capacitance @ Vr, F	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]	Power Dissipation (Max) [Max]	Package / Case	Diode Type	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max)	Current - Max [Max]	Frequency [Max]	Frequency [Min]	Contents	Type	Utilized IC / Part
Skyworks Solutions Inc. SMP1302-079LF	1.5 Ohm	0.3 pF	SC-79	200 V	250 mW	SC-79 SOD-523	PIN - Single	-65 °C	150 °C
Skyworks Solutions Inc. SMP1302-085LF	1.5 Ohm	0.35 pF	3-QFN (2x2)	200 V		2-VDFN Exposed Pad	PIN - Single	-40 °C	150 °C	3 W	1.5 A
Skyworks Solutions Inc. SMP1302-078LF	1.5 Ohm	0.3 pF	SC-88	200 V	250 mW	6-TSSOP SC-88 SOT-363	PIN - 2 Pair Common Cathode	-65 °C	150 °C
Skyworks Solutions Inc. SMP1302-085LF-EVB												6 GHz	10 MHz	Board(s)	PIN Diode	SMP1302-085LF
Skyworks Solutions Inc. SMP1302-003LF	1.5 Ohm	0.3 pF	SOT-23-3	200 V	250 mW	SC-59 SOT-23-3 TO-236-3	PIN - 1 Pair Common Anode	-65 °C	150 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMP1302-085LF - PIN Diode 10MHz ~ 6GHz Evaluation Board

Technical documentation and resources

No documents available
