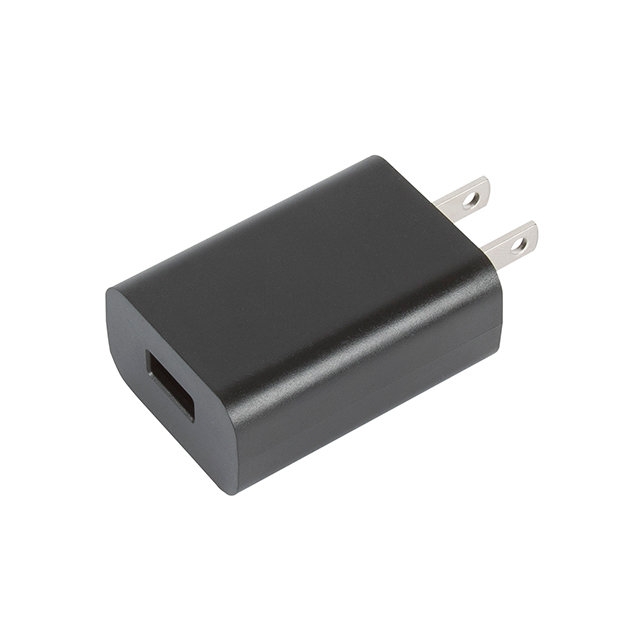

VEU10US050-US
ActiveXP POWER
AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VEU10US050-US
ActiveXP POWER
AC/DC WALL MOUNT ADAPTER 5V 10W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VEU10US050-US |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CCC, TUV, UL |
| Current - Output (Max) [Max] | 2.1 A |
| Efficiency | CoC Tier 2, Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Multi-Blade, Fixed Blade |
| No Load Power Consumption [Max] | 75 mW |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 10 W |
| Region Utilized | North America |
| Size / Dimension [x] | 1.45 " |
| Size / Dimension [x] | 36.8 mm |
| Size / Dimension [y] | 21.8 mm |
| Size / Dimension [y] | 0.86 " |
| Size / Dimension [z] | 50.8 mm |
| Size / Dimension [z] | 2 " |
| Standard Number | 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 9.73 | |
| 5 | $ 8.95 | |||
| 10 | $ 8.63 | |||
| 25 | $ 8.23 | |||
| 50 | $ 7.94 | |||
| 100 | $ 7.65 | |||
| 250 | $ 7.30 | |||
| 500 | $ 7.04 | |||
Description
General part information
VEU10 Series
5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade, Multi-Blade (Sold Separately) Input
