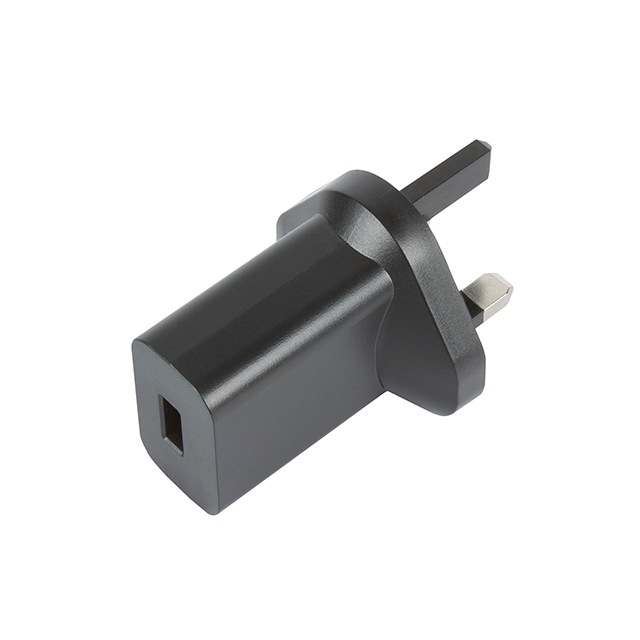

VEU10US050-UK

Active

XP POWER

AC/DC WALL MOUNT ADAPTER 5V 10W

Search across all available documentation for this part.

Active

XP POWER

AC/DC WALL MOUNT ADAPTER 5V 10W

Technical Specifications

Parameters and characteristics for this part

Specification	VEU10US050-UK

Applications	ITE (Commercial)
Approval Agency	CB, CCC, TUV, UL
Current - Output (Max) [Max]	2.1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	BS 1363
Input Type	Multi-Blade, Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	0 °C
Power (Watts)	10 W
Region Utilized	United Kingdom
Size / Dimension [x]	48.8 mm
Size / Dimension [x]	1.92 "
Size / Dimension [y]	1.68 in
Size / Dimension [y]	42.7 mm
Size / Dimension [z]	50.8 mm
Size / Dimension [z]	2 "
Standard Number	62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Current - Output (Max) [Max]	Region Utilized	Approval Agency	Applications	No Load Power Consumption [Max]	Input Connector	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Form	Standard Number	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output	Input Type
XP POWER VEU10US050-UK	2.1 A	United Kingdom	CB CCC TUV UL	ITE (Commercial)	75 mW	BS 1363	60 °C	1.68 in	50.8 mm	42.7 mm	48.8 mm	2 "	1.92 "	CoC Tier 2 Level VI	Wall Mount (Class II)	62368-1	10 W	90 VAC	264 VAC	5 V	Fixed Blade Multi-Blade
XP POWER VEU10US050-US	2.1 A	North America	CB CCC TUV UL	ITE (Commercial)	75 mW	NEMA 1-15P	60 °C	0.86 "	50.8 mm	21.8 mm	36.8 mm	2 "	1.45 "	CoC Tier 2 Level VI	Wall Mount (Class II)	62368-1	10 W	90 VAC	264 VAC	5 V	Fixed Blade Multi-Blade
XP POWER VEU10US050-EU	2.1 A	Europe	CB CCC TUV UL	ITE (Commercial)	75 mW	CEE 7/16	60 °C	0.86 "	55.9 mm	21.8 mm	36.8 mm	2.2 in	1.45 "	CoC Tier 2 Level VI	Wall Mount (Class II)	62368-1	10 W	90 VAC	264 VAC	5 V	Fixed Blade Multi-Blade

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 10 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade, Multi-Blade (Sold Separately) Input
