09307240731 - 9307240731

09307240731

Active
HARTING Technology Group

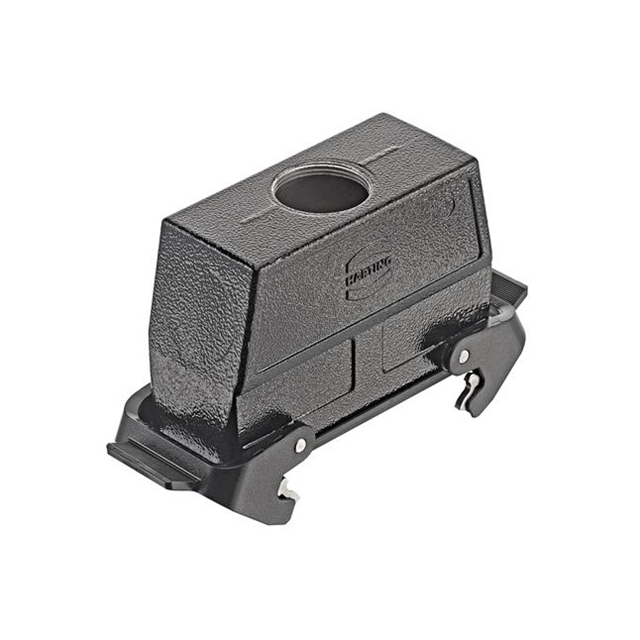

24B HOOD CABLE TO CABLE, DOUBLE LEVER, HIGH CONSTRUCTION, PG29 - BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
09307240731 - 9307240731

09307240731

Active
HARTING Technology Group

24B HOOD CABLE TO CABLE, DOUBLE LEVER, HIGH CONSTRUCTION, PG29 - BLACK

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification09307240731
Connector TypeHood - Coupling
FeaturesCable to Cable
Housing ColorBlack
Housing FinishPowder Coated
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (2) on Hood Top
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size24 B
Size / Dimension [x]4.724 "
Size / Dimension [x]120 mm
Size / Dimension [y]43 mm
Size / Dimension [y]1.693 in
Size / Dimension [z]3.087 "
Size / Dimension [z]78.4 mm
StyleBottom Entry
Thread SizePG29

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 59.34
NewarkEach 1$ 62.16
10$ 58.67
25$ 56.92
50$ 52.73
100$ 49.94
TMEN/A 1$ 54.81
3$ 49.04
5$ 43.27

Description

General part information

09307240 Series

Hood - Coupling Connector Bottom Entry PG29 24B IP65 - Dust Tight, Water Resistant
