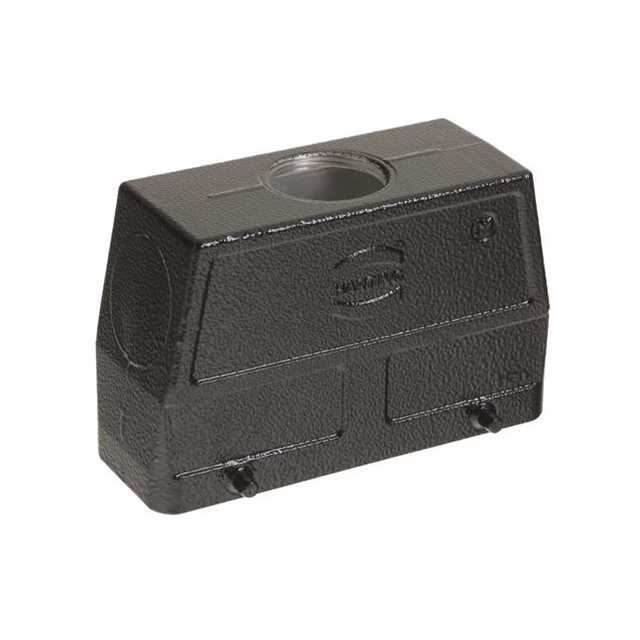

24B HOOD TOP ENTRY, DOUBLE LEVER, HIGH CONSTRUCTION, PG29 - BLACK

Search across all available documentation for this part.

Active

HARTING Technology Group

24B HOOD TOP ENTRY, DOUBLE LEVER, HIGH CONSTRUCTION, PG29 - BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	09307240421

Connector Type	Hood
Housing Color	Black
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Top Entry
Thread Size	PG29

Part	Lock Location	Housing Finish	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Housing Color	Style	Size	Connector Type	Housing Material	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Features
HARTING Technology Group 09307240520	Locking Clip (2) on Base Bottom	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Black	Side Entry	24 B	Hood	Aluminum Die Cast	PG21	125 °C	-40 °C	IP65 - Dust Tight Water Resistant
HARTING Technology Group 09307240731	Locking Clip (2) on Hood Top	Powder Coated	120 mm	4.724 "	43 mm	78.4 mm	1.693 in	3.087 "	Black	Bottom Entry	24 B	Hood - Coupling	Aluminum Die Cast	PG29	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Cable to Cable
HARTING Technology Group 09307240312
HARTING Technology Group 09307240421	Locking Clip (2) on Base Bottom	Powder Coated	120 mm	4.724 "	43 mm	76 mm	1.693 in	2.992 in	Black	Top Entry	24 B	Hood	Aluminum Die Cast	PG29	125 °C	-40 °C	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry PG29 24B IP65 - Dust Tight, Water Resistant
