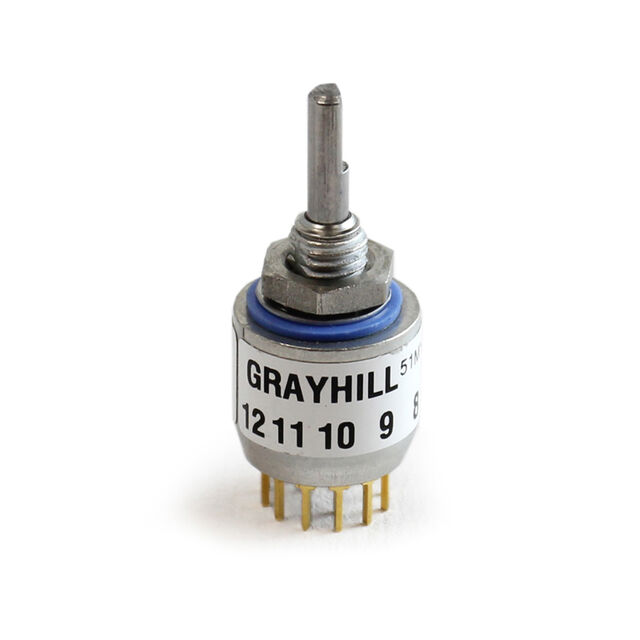

51A22-01-2-06N
ActiveGrayhill Inc.
SWITCH ROTARY 6POS 150MA 115V
Deep-Dive with AI
Search across all available documentation for this part.
51A22-01-2-06N
ActiveGrayhill Inc.
SWITCH ROTARY 6POS 150MA 115V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 51A22-01-2-06N |
|---|---|
| Actuator Length [x] | 9.53 mm |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 3.17 mm |
| Angle of Throw | 22.5 ° |
| Circuit per Deck [custom] | DP6T |
| Contact Finish | Gold |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 200 mA, 150 mA |
| Depth Behind Panel [z] | 18.77 mm |
| Index Stops | Fixed |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 2 |
| Number of Positions | 6 |
| Panel Cutout Dimensions [diameter] | 6.45 mm |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
51A22 Series
| Part | Voltage Rating - AC | Current Rating (Amps) | Termination Style | Index Stops | Circuit per Deck | Panel Cutout Dimensions [diameter] | Actuator Type [diameter] | Actuator Type | Contact Finish | Depth Behind Panel [z] | Number of Poles per Deck | Number of Decks [custom] | Voltage Rating - DC | Actuator Length [x] | Contact Timing | Angle of Throw | Number of Positions | Number of Positions | Circuit per Deck [custom] | Circuit per Deck [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. | 115 V | 150 mA 200 mA | Solder Lug | Fixed | SP12T | 6.45 mm | 3.17 mm | Flatted | Gold | 18.77 mm | 1 | 1 | 28 V | 9.53 mm | Non-Shorting | 22.5 ° | 12 | |||
Grayhill Inc. | 115 V | 150 mA 200 mA | Solder Lug | Fixed | SP16T | 6.45 mm | 3.17 mm | Flatted | Gold | 18.77 mm | 1 | 1 | 28 V | 9.53 mm | Shorting | 22.5 ° | 16 | |||
Grayhill Inc. | 115 V | 150 mA 200 mA | Solder Lug | Fixed | SP10T | 3.17 mm | Flatted | Gold | 18.77 mm | 1 | 1 | 28 V | 9.53 mm | Shorting | 22.5 ° | 10 | ||||
Grayhill Inc. | 115 V | 150 mA 200 mA | Solder Lug | Fixed | SP8T | 6.45 mm | 3.17 mm | Flatted | Gold | 18.77 mm | 1 | 1 | 28 V | 9.53 mm | Non-Shorting | 22.5 ° | 8 | |||
Grayhill Inc. | 115 V | 150 mA 200 mA | Solder Lug | Fixed | SP3T | 6.45 mm | 3.17 mm | Flatted | Gold | 18.77 mm | 1 | 1 | 28 V | 9.53 mm | Non-Shorting | 22.5 ° | ||||
Grayhill Inc. | 115 V | 150 mA 200 mA | Solder Lug | Fixed | 6.45 mm | 3.17 mm | Flatted | Gold | 18.77 mm | 1 | 1 | 28 V | 9.53 mm | Non-Shorting | 22.5 ° | 14 | SP14T | |||
Grayhill Inc. | 115 V | 150 mA 200 mA | Solder Lug | Continuous | SP16T | 6.45 mm | 3.17 mm | Flatted | Gold | 18.77 mm | 1 | 1 | 28 V | 9.53 mm | Non-Shorting | 22.5 ° | 16 | |||
Grayhill Inc. | 115 V | 150 mA 200 mA | Solder Lug | Fixed | DP3T | 6.45 mm | 3.17 mm | Flatted | Gold | 18.77 mm | 2 | 1 | 28 V | 9.53 mm | Non-Shorting | 22.5 ° | ||||
Grayhill Inc. | 115 V | 150 mA 200 mA | Solder Lug | Fixed | 6.45 mm | 3.17 mm | Flatted | Gold | 18.77 mm | 2 | 1 | 28 V | 9.53 mm | Non-Shorting | 22.5 ° | 6 | DP6T |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 31.48 | |
Description
General part information
51A22 Series
Rotary Switch 6 Position DP6T 150mA (AC), 200mA (DC) 115 VAC Panel Mount
