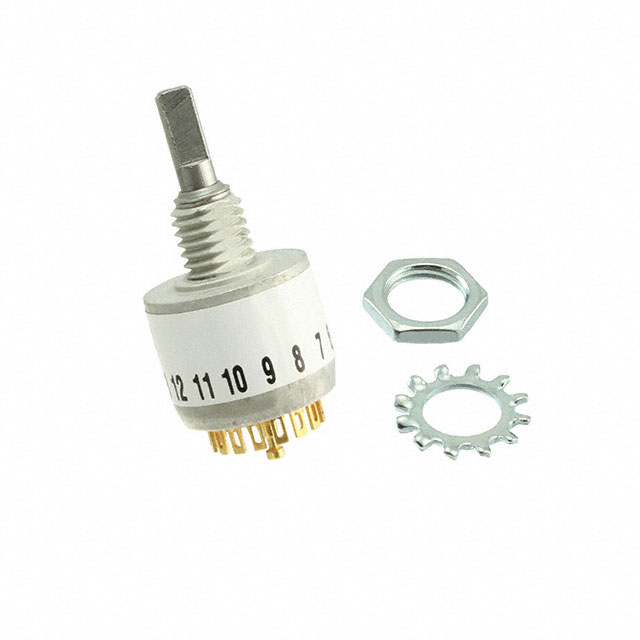

51A22-01-1-16N

Active

Grayhill Inc.

ROTARY SWITCH, SOLDER LUG, 16 POSITION, 1 POLE, 22.5 °, 150 MA, 115 V, 51 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Product Change Notice EN

51A22-01-1-16N

Active

Grayhill Inc.

ROTARY SWITCH, SOLDER LUG, 16 POSITION, 1 POLE, 22.5 °, 150 MA, 115 V, 51 SERIES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	51A22-01-1-16N

Actuator Length [x]	9.53 mm
Actuator Type	Flatted
Actuator Type [diameter]	3.17 mm
Angle of Throw	22.5 °
Circuit per Deck	SP16T
Contact Finish	Gold
Contact Timing	Non-Shorting
Current Rating (Amps)	200 mA, 150 mA
Depth Behind Panel [z]	18.77 mm
Index Stops	Continuous
Number of Decks [custom]	1
Number of Poles per Deck	1
Number of Positions	16
Panel Cutout Dimensions [diameter]	6.45 mm
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

51A22 Series

Part	Voltage Rating - AC	Current Rating (Amps)	Termination Style	Index Stops	Circuit per Deck	Panel Cutout Dimensions [diameter]	Actuator Type [diameter]	Actuator Type	Contact Finish	Depth Behind Panel [z]	Number of Poles per Deck	Number of Decks [custom]	Voltage Rating - DC	Actuator Length [x]	Contact Timing	Angle of Throw	Number of Positions	Number of Positions	Circuit per Deck [custom]	Circuit per Deck [custom]
Grayhill Inc. 51A22-01-1-12N	115 V	150 mA 200 mA	Solder Lug	Fixed	SP12T	6.45 mm	3.17 mm	Flatted	Gold	18.77 mm	1	1	28 V	9.53 mm	Non-Shorting	22.5 °	12
Grayhill Inc. 51A22-01-1-16S-F	115 V	150 mA 200 mA	Solder Lug	Fixed	SP16T	6.45 mm	3.17 mm	Flatted	Gold	18.77 mm	1	1	28 V	9.53 mm	Shorting	22.5 °		16
Grayhill Inc. 51A22-01-1-10S	115 V	150 mA 200 mA	Solder Lug	Fixed	SP10T		3.17 mm	Flatted	Gold	18.77 mm	1	1	28 V	9.53 mm	Shorting	22.5 °	10
Grayhill Inc. 51A22-01-1-08N	115 V	150 mA 200 mA	Solder Lug	Fixed	SP8T	6.45 mm	3.17 mm	Flatted	Gold	18.77 mm	1	1	28 V	9.53 mm	Non-Shorting	22.5 °	8
Grayhill Inc. 51A22-01-1-03N	115 V	150 mA 200 mA	Solder Lug	Fixed	SP3T	6.45 mm	3.17 mm	Flatted	Gold	18.77 mm	1	1	28 V	9.53 mm	Non-Shorting	22.5 °
Grayhill Inc. 51A22-01-1-14N	115 V	150 mA 200 mA	Solder Lug	Fixed		6.45 mm	3.17 mm	Flatted	Gold	18.77 mm	1	1	28 V	9.53 mm	Non-Shorting	22.5 °	14		SP14T
Grayhill Inc. 51A22-01-1-16N	115 V	150 mA 200 mA	Solder Lug	Continuous	SP16T	6.45 mm	3.17 mm	Flatted	Gold	18.77 mm	1	1	28 V	9.53 mm	Non-Shorting	22.5 °		16
Grayhill Inc. 51A22-01-2-03N	115 V	150 mA 200 mA	Solder Lug	Fixed	DP3T	6.45 mm	3.17 mm	Flatted	Gold	18.77 mm	2	1	28 V	9.53 mm	Non-Shorting	22.5 °
Grayhill Inc. 51A22-01-2-06N	115 V	150 mA 200 mA	Solder Lug	Fixed		6.45 mm	3.17 mm	Flatted	Gold	18.77 mm	2	1	28 V	9.53 mm	Non-Shorting	22.5 °	6			DP6T

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.76
		5	$ 32.90
		10	$ 30.88
		25	$ 28.31
		50	$ 26.47
		100	$ 24.82
		250	$ 23.90
Newark	Each	1	$ 41.14
		100	$ 33.68
		250	$ 30.74

Description

General part information

51A22 Series

Rotary Switch 16 Position SP16T 150mA (AC), 200mA (DC) 115 VAC Panel Mount

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet
