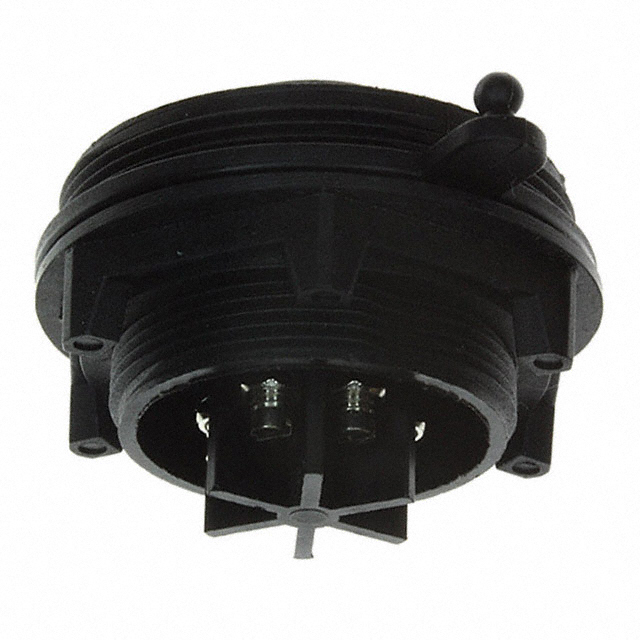

PX0738/S - PX0738/S

PX0738/S

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT RECEPTACLE, 6 CONTACTS, SCREW SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetTechnical Data Sheet EN+1
PX0738/S - PX0738/S

PX0738/S

Active
BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT RECEPTACLE, 6 CONTACTS, SCREW SOCKET

Deep-Dive with AI

DocumentsDatasheetTechnical Data Sheet EN+1

Technical Specifications

Parameters and characteristics for this part

SpecificationPX0738/S
ColorBlack
Connector TypeReceptacle, Female Sockets
Contact Finish - MatingNickel
Contact MaterialBrass
Current Rating (Amps)3 A
Ingress ProtectionIP68, IP69K
Insert MaterialNylon, Polyamide (PA)
Material Flammability RatingUL94 HB
Number of Positions6
Operating Temperature [Max]70 °C
Operating Temperature [Min]-20 C
OrientationKeyed
Primary MaterialPlastic
Shell MaterialNylon, Glass Filled, Polyamide (PA)
ShieldingUnshielded
TerminationScrew
Voltage Rating277 VAC/DC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 27.04
10$ 23.68
25$ 22.65
50$ 21.92
100$ 21.19
250$ 20.02
500$ 19.44
NewarkEach 1$ 26.08
10$ 23.97
25$ 22.91
50$ 21.86
100$ 20.80
250$ 20.20
500$ 19.60

Description

General part information

PX0738 Series

The PX0738/S is a 6-way front panel-mount Circular Connector with screw termination and socket contacts. This Buccaneer standard series receptacle mates with the flexible cable connector and single hole fixing.
