PX0738/P
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT PLUG, 6 CONTACTS, SCREW PIN, THREADED
Deep-Dive with AI
Search across all available documentation for this part.
PX0738/P
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PANEL MOUNT PLUG, 6 CONTACTS, SCREW PIN, THREADED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0738/P |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Nickel |
| Contact Material | Brass |
| Current Rating (Amps) | 3 A |
| Ingress Protection | IP68, IP69K |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 HB |
| Number of Positions | 6 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 277 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.89 | |
| 10 | $ 16.54 | |||
| 25 | $ 15.83 | |||
| 50 | $ 15.32 | |||
| 100 | $ 14.81 | |||
| 250 | $ 13.99 | |||
| 500 | $ 13.58 | |||
Description
General part information
PX0738 Series

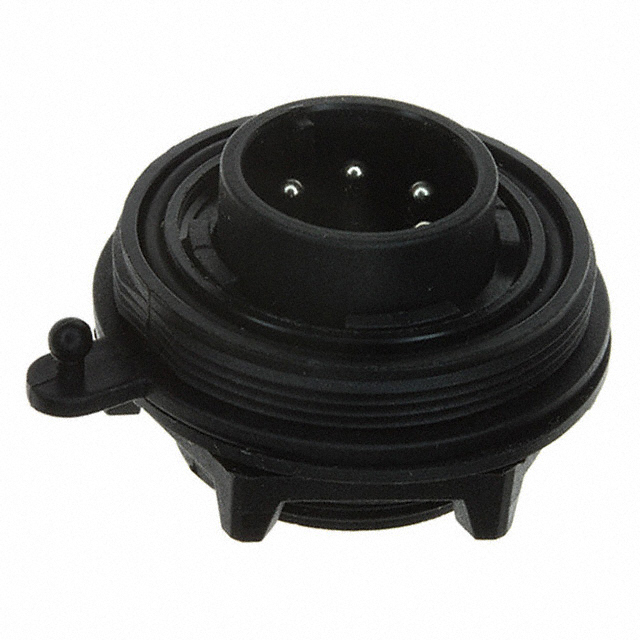

The PX0738/P is a 6-way front panel-mount Circular Connector with screw termination and pin contacts. This Buccaneer standard series plug mates with the flexible cable connector and single hole fixing.
