940-SP-3046R
ActiveBEL MAGNETIC SOLUTIONS

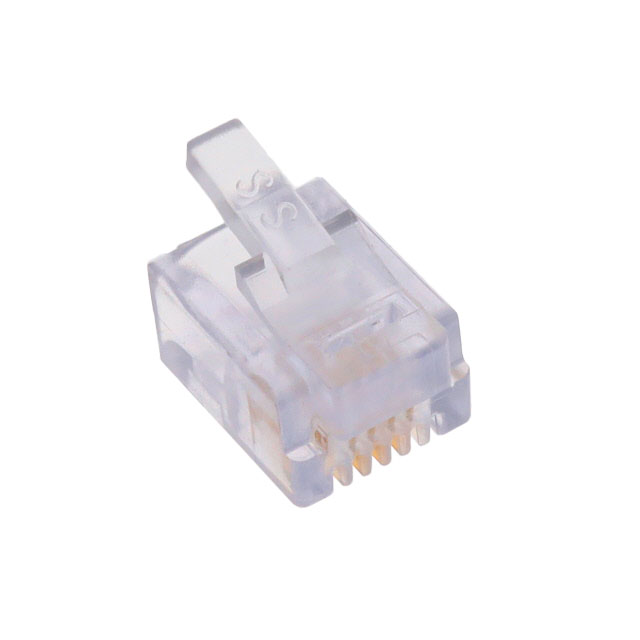

MODULAR CONNECTOR, RJ11 PLUG, 1 X 1 (PORT), 6P4C, CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
940-SP-3046R
ActiveBEL MAGNETIC SOLUTIONS
MODULAR CONNECTOR, RJ11 PLUG, 1 X 1 (PORT), 6P4C, CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 940-SP-3046R |
|---|---|
| Cable Type | Round Cable, Solid, Stranded Wires |
| Color | Translucent - Clear |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 1.5 A |
| Housing Material | Polycarbonate (PC) |
| Length | 13.34 mm |
| Length | 0.525 in |
| Number of Positions/Contacts | 6p4c |
| Shielding | Unshielded |
| Termination | IDC |
| Voltage Rating | 150 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.28 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.21 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.19 | |||
| 250 | $ 0.17 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.14 | |||
Description
General part information
940-SP-30 Series
Plug Modular Connector 6p4c (RJ11, RJ14) Position Unshielded IDC
