940-SP-3044
ActiveBEL MAGNETIC SOLUTIONS

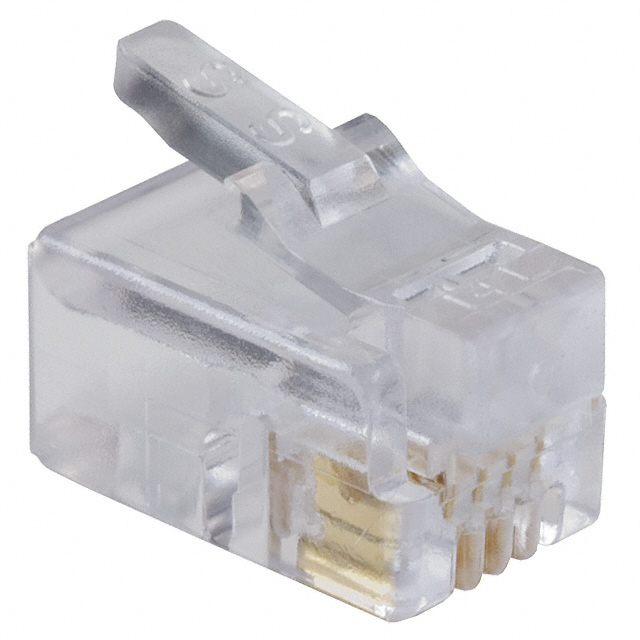

MODULAR CONNECTOR, RJ11 PLUG, 1 X 1 (PORT), 4P4C, CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsAssembly Instructions EN
940-SP-3044
ActiveBEL MAGNETIC SOLUTIONS
MODULAR CONNECTOR, RJ11 PLUG, 1 X 1 (PORT), 4P4C, CABLE MOUNT
Deep-Dive with AI
DocumentsAssembly Instructions EN
Technical Specifications
Parameters and characteristics for this part
| Specification | 940-SP-3044 |
|---|---|
| Cable Type | Flat Oval Cable, Solid or Stranded Wires |
| Color | Translucent - Clear |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 1.5 A |
| Housing Material | Polycarbonate (PC) |
| Length | 13.34 mm |
| Length | 0.525 in |
| Number of Positions/Contacts | 4p4c |
| Shielding | Unshielded |
| Termination | IDC |
| Voltage Rating | 150 VDC |
940-SP-30 Series
| Part | Shielding | Connector Type | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Color | Cable Type | Current Rating (Amps) | Length | Length | Termination | Contact Material | Contact Finish | Voltage Rating | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Number of Positions/Contacts | Features | Length | Ratings | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BEL MAGNETIC SOLUTIONS | Unshielded | Plug | 10 | 10 | Translucent - Clear | Round Cable Solid Stranded Wires | 1.5 A | 22.48 mm | 0.885 in | IDC | Phosphor Bronze | Gold | 150 VDC | 50 µin | 1.27 µm | Polycarbonate (PC) | ||||||
BEL MAGNETIC SOLUTIONS | Unshielded | Plug | Translucent - Clear | Round Cable Solid Stranded Wires | 1.5 A | 22.48 mm | 0.885 in | IDC | Phosphor Bronze | Gold | 150 VDC | 50 µin | 1.27 µm | Polycarbonate (PC) | 8p8c (RJ45 Ethernet) | Keyed | ||||||
BEL MAGNETIC SOLUTIONS | Unshielded | Plug | Translucent - Clear | Round Cable Solid Stranded Wires | 1.5 A | 22.48 mm | 0.885 in | IDC | Phosphor Bronze | Gold | 150 VDC | 50 µin | 1.27 µm | Polycarbonate (PC) | 8p8c (RJ45 Ethernet) | |||||||
BEL MAGNETIC SOLUTIONS | Unshielded | Plug | Translucent - Clear | Flat Oval Cable Solid or Stranded Wires | 1.5 A | 22.48 mm | 0.885 in | IDC | Phosphor Bronze | Gold | 150 VDC | 50 µin | 1.27 µm | Polycarbonate (PC) | 8p8c (RJ45 Ethernet) | |||||||
BEL MAGNETIC SOLUTIONS | Unshielded | Plug | Translucent - Clear | Flat Oval Cable Solid or Stranded Wires | 1.5 A | 13.34 mm | IDC | Phosphor Bronze | Gold | 150 VDC | 50 µin | 1.27 µm | Polycarbonate (PC) | 4p4c | 0.525 in | |||||||
BEL MAGNETIC SOLUTIONS | Unshielded | Plug | Translucent - Clear | Round Cable Solid Stranded Wires | 1.5 A | 22.48 mm | 0.885 in | IDC | Phosphor Bronze | Gold | 150 VDC | 50 µin | 1.27 µm | Polycarbonate (PC) | 8p8c (RJ45 Ethernet) | |||||||
BEL MAGNETIC SOLUTIONS | Unshielded | Plug | Translucent - Clear | Flat Oval Cable Solid or Stranded Wires | 1.5 A | 13.34 mm | IDC | Phosphor Bronze | Gold | 150 VDC | 50 µin | 1.27 µm | Polycarbonate (PC) | 6p4c | 0.525 in | Cat5 | 24 AWG | 28 AWG | ||||
BEL MAGNETIC SOLUTIONS | Unshielded | Plug | Translucent - Clear | Flat Oval Cable Solid or Stranded Wires | 1.5 A | 13.34 mm | IDC | Phosphor Bronze | Gold | 150 VDC | 50 µin | 1.27 µm | Polycarbonate (PC) | 6p6c (RJ11 RJ12 RJ14 RJ25) | 0.525 in | |||||||
BEL MAGNETIC SOLUTIONS | Unshielded | Plug | Translucent - Clear | Round Cable Solid Stranded Wires | 1.5 A | 13.34 mm | IDC | Phosphor Bronze | Gold | 150 VDC | 50 µin | 1.27 µm | Polycarbonate (PC) | 6p6c (RJ11 RJ12 RJ14 RJ25) | 0.525 in | |||||||
BEL MAGNETIC SOLUTIONS | Unshielded | Plug | Translucent - Clear | Round Cable Solid Stranded Wires | 1.5 A | 13.34 mm | IDC | Phosphor Bronze | Gold | 150 VDC | 50 µin | 1.27 µm | Polycarbonate (PC) | 6p4c | 0.525 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
940-SP-30 Series
MODULAR CONNECTOR, RJ11 PLUG, 1 X 1 (PORT), 4P4C, CABLE MOUNT
