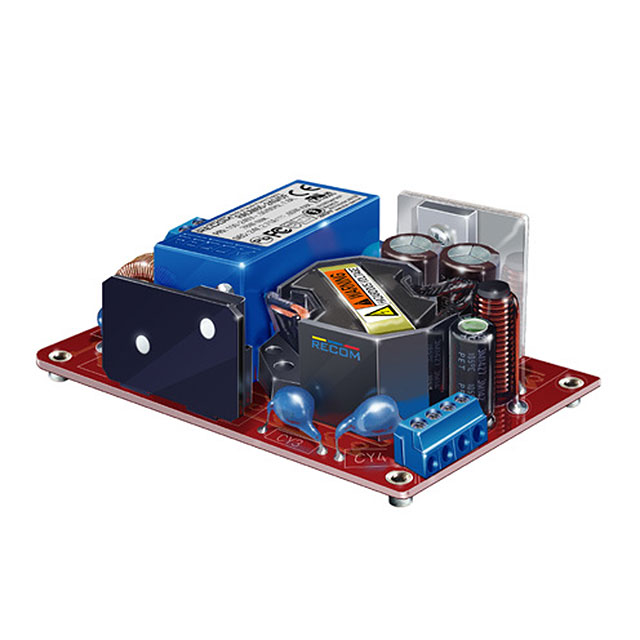

RACM65-48S/OF

Active

RECOM Power

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 65 W, 85V AC TO 264V AC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

RACM65-48S/OF

Active

RECOM Power

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 65 W, 85V AC TO 264V AC

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RACM65-48S/OF

Applications	Medical
Approval Agency	CE, cURus
Current - Output 1	1.36 A
Efficiency	93 %
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	76.2 mm
Size / Dimension [x]	3 "
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	26.5 mm
Size / Dimension [z]	1.04 in
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

RACM65-48 Series

Switching Power Supplies 65W 48V 1360mA Open Frame

Part	Current - Output 1	Applications	Voltage - Output 1	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Mounting Type	Voltage - Isolation	Number of Outputs	Type	Approval Agency	Size / Dimension [y]	Size / Dimension [z]
RECOM Power RACM65-15S/OF-ST	4.33 A	Medical	15 V	26.5 mm	76.2 mm	1.04 in	3 "	2 in	50.8 mm	Adjustable Output DC Input Capable Universal Input	85 °C	-40 °C	93.5 %	Chassis Mount	4000 V	1	Open Frame	CE cURus
RECOM Power RACM65-05S/OF-ST	10 A	Medical	5 V	26.5 mm	76.2 mm	1.04 in	3 "	2 in	50.8 mm	Adjustable Output DC Input Capable Universal Input	85 °C	-40 °C	90 %	Chassis Mount	4000 V	1	Open Frame	CE cURus
RECOM Power RACM65-05S/OF	10 A	Medical	5 V	26.5 mm	76.2 mm	1.04 in	3 "	2 in	50.8 mm	Adjustable Output DC Input Capable Universal Input	85 °C	-40 °C	90 %	Chassis Mount	4000 V	1	Open Frame	CE cURus
RECOM Power RACM65-24S/OF	2.71 A	Medical	24 V	26.5 mm	76.2 mm	1.04 in	3 "	2 in	50.8 mm	Adjustable Output DC Input Capable Universal Input	85 °C	-40 °C	93.5 %	Chassis Mount	4000 V	1	Open Frame	CE cURus
RECOM Power RACM65-12S/OF	5.42 A	Medical	12 V	26.5 mm	76.2 mm	1.04 in	3 "	2 in	50.8 mm	Adjustable Output DC Input Capable Universal Input	85 °C	-40 °C	92.5 %	Chassis Mount	4000 V	1	Open Frame	CE cURus
RECOM Power RACM65-48S/OF-ST	1.36 A	Medical	48 V	26.5 mm	76.2 mm	1.04 in	3 "	2 in	50.8 mm	Adjustable Output DC Input Capable Universal Input	85 °C	-40 °C	93 %	Chassis Mount	4000 V	1	Open Frame	CE cURus
RECOM Power RACM65-24S	2.71 A	Medical	24 V		91.4 mm	1.31 "	3.6 in	2.38 "		Adjustable Output DC Input Capable Universal Input	85 °C	-40 °C	93.5 %	Chassis Mount	4000 V	1	Enclosed	CE cURus	60.5 mm	33.3 mm
RECOM Power RACM65-48S	1.36 A	Medical	48 V		91.4 mm	1.31 "	3.6 in	2.38 "		Adjustable Output DC Input Capable Universal Input	85 °C	-40 °C	93 %	Chassis Mount	4000 V	1	Enclosed	CE cURus	60.5 mm	33.3 mm
RECOM Power RACM65-48S/OF	1.36 A	Medical	48 V	26.5 mm	76.2 mm	1.04 in	3 "	2 in	50.8 mm	Adjustable Output DC Input Capable Universal Input	85 °C	-40 °C	93 %	Chassis Mount	4000 V	1	Open Frame	CE cURus
RECOM Power RACM65-12S-ST	5.42 A	Medical	12 V		91.4 mm	1.31 "	3.6 in	2.38 "		Adjustable Output DC Input Capable Universal Input	85 °C	-40 °C	92.5 %	Chassis Mount	4000 V	1	Enclosed	CE cURus	60.5 mm	33.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 94.55
Newark	Each	1	$ 116.87
		5	$ 111.19
		10	$ 108.36
		25	$ 96.45
		50	$ 88.50
		100	$ 83.40
		250	$ 80.56
Sager	N/A	1	$ 94.55
		5	$ 88.64
		10	$ 83.42
		25	$ 77.72
		50	$ 74.65
		100	$ 72.71
		250	$ 69.18

Description

General part information

RACM65-48 Series

Switching Power Supplies 65W 48V 1360mA Open Frame

Documents

Technical documentation and resources

Datasheet

Document

Technical Data Sheet EN

Datasheet
