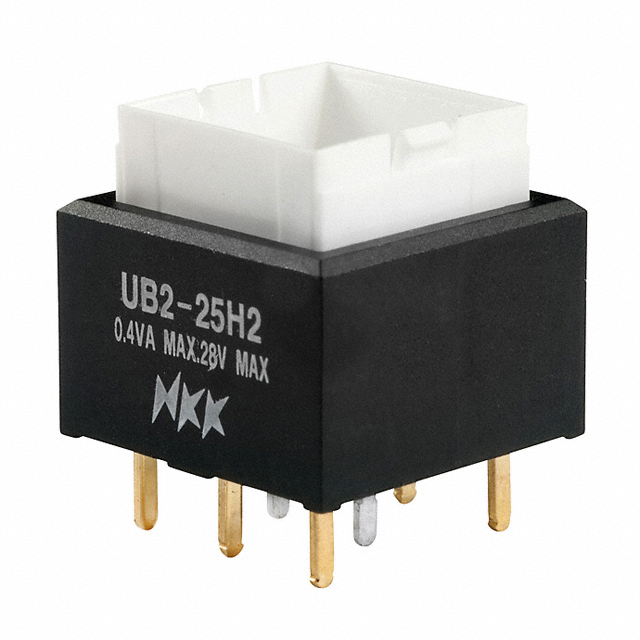

UB225SKG036G-1JB

Active

NKK Switches

SWITCH PUSH DPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet UB2 Indicators

UB225SKG036G-1JB

Active

NKK Switches

SWITCH PUSH DPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet UB2 Indicators

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB225SKG036G-1JB

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	DPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	200000 Cycles
Features	Sealed - Fully
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal)	2.9 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

UB225SK Series

Part	Illumination Voltage (Nominal)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Marking	Mounting Type	Type	Switch Function	Actuator Type	Termination Style	Electrical Life	Color - Actuator/Cap	Features	Mechanical Life	Voltage Rating - DC	Illumination Type, Color	Current Rating (Amps)
NKK Switches UB225SKG036G-1JB	2.9 VDC	28 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Button Square	PC Pin	200000 Cycles	Clear	Sealed - Fully	1000000 Cycles	28 V	Blue LED	0.4 VA
NKK Switches UB225SKW035C-1JC	1.85 VDC	125 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Button Square	PC Pin	10000 Cycles	Clear (Red Filter/Diffuser)	Sealed - Fully	1000000 Cycles	30 V	LED Red	5 A
NKK Switches UB225SKW03N-4JB		125 V	70 °C	-25 °C	DPDT	No Marking	Through Hole	Standard	On-Mom	Button Square	PC Pin	10000 Cycles	Clear	Sealed - Fully	1000000 Cycles	30 V		5 A
NKK Switches UB225SKG036CF-1JB	2.1 VDC 3.5 VDC	28 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Button Square	PC Pin	200000 Cycles	Clear	Sealed - Fully	1000000 Cycles	28 V	Green/Red LED	0.4 VA
NKK Switches UB225SKW035C-1JB	1.85 VDC	125 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Button Square	PC Pin	10000 Cycles	Clear	Sealed - Fully	1000000 Cycles	30 V	LED Red	5 A
NKK Switches UB225SKW035C	1.85 VDC	125 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Plunger for Cap	PC Pin	10000 Cycles		Sealed - Fully	1000000 Cycles	30 V	LED Red	5 A
NKK Switches UB225SKW036CF	2.1 VDC 3.5 VDC	125 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Plunger for Cap	PC Pin	10000 Cycles		Sealed - Fully	1000000 Cycles	30 V	Green/Red LED	5 A
NKK Switches UB225SKG035C-1JB	1.85 VDC	28 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Button Square	PC Pin	200000 Cycles	Clear	Sealed - Fully	1000000 Cycles	28 V	LED Red	0.4 VA
NKK Switches UB225SKW03N-5B		125 V	70 °C	-25 °C	DPDT	No Marking	Through Hole	Standard	On-Mom	Button Square	PC Pin	10000 Cycles	White	Sealed - Fully	1000000 Cycles	30 V		5 A
NKK Switches UB225SKW035D	2 VDC	125 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Plunger for Cap	PC Pin	10000 Cycles		Sealed - Fully	1000000 Cycles	30 V	Amber LED	5 A
