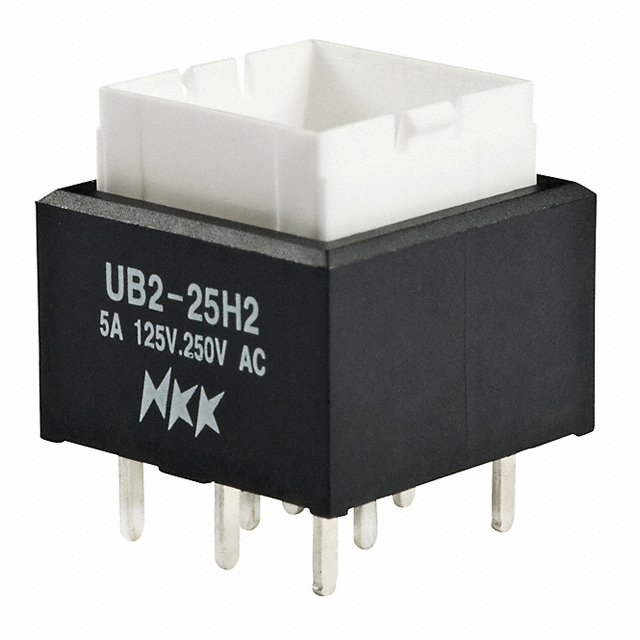

UB225SKW036CF

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet UB2 Indicators

UB225SKW036CF

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet UB2 Indicators

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UB225SKW036CF

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Sealed - Fully
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	2.1 VDC, 3.5 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

UB225SK Series

Part	Illumination Voltage (Nominal)	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Marking	Mounting Type	Type	Switch Function	Actuator Type	Termination Style	Electrical Life	Color - Actuator/Cap	Features	Mechanical Life	Voltage Rating - DC	Illumination Type, Color	Current Rating (Amps)
NKK Switches UB225SKG036G-1JB	2.9 VDC	28 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Button Square	PC Pin	200000 Cycles	Clear	Sealed - Fully	1000000 Cycles	28 V	Blue LED	0.4 VA
NKK Switches UB225SKW035C-1JC	1.85 VDC	125 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Button Square	PC Pin	10000 Cycles	Clear (Red Filter/Diffuser)	Sealed - Fully	1000000 Cycles	30 V	LED Red	5 A
NKK Switches UB225SKW03N-4JB		125 V	70 °C	-25 °C	DPDT	No Marking	Through Hole	Standard	On-Mom	Button Square	PC Pin	10000 Cycles	Clear	Sealed - Fully	1000000 Cycles	30 V		5 A
NKK Switches UB225SKG036CF-1JB	2.1 VDC 3.5 VDC	28 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Button Square	PC Pin	200000 Cycles	Clear	Sealed - Fully	1000000 Cycles	28 V	Green/Red LED	0.4 VA
NKK Switches UB225SKW035C-1JB	1.85 VDC	125 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Button Square	PC Pin	10000 Cycles	Clear	Sealed - Fully	1000000 Cycles	30 V	LED Red	5 A
NKK Switches UB225SKW035C	1.85 VDC	125 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Plunger for Cap	PC Pin	10000 Cycles		Sealed - Fully	1000000 Cycles	30 V	LED Red	5 A
NKK Switches UB225SKW036CF	2.1 VDC 3.5 VDC	125 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Plunger for Cap	PC Pin	10000 Cycles		Sealed - Fully	1000000 Cycles	30 V	Green/Red LED	5 A
NKK Switches UB225SKG035C-1JB	1.85 VDC	28 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Button Square	PC Pin	200000 Cycles	Clear	Sealed - Fully	1000000 Cycles	28 V	LED Red	0.4 VA
NKK Switches UB225SKW03N-5B		125 V	70 °C	-25 °C	DPDT	No Marking	Through Hole	Standard	On-Mom	Button Square	PC Pin	10000 Cycles	White	Sealed - Fully	1000000 Cycles	30 V		5 A
NKK Switches UB225SKW035D	2 VDC	125 V	50 °C	-25 °C	DPDT	No Marking	Through Hole	Illuminated Standard	On-Mom	Plunger for Cap	PC Pin	10000 Cycles		Sealed - Fully	1000000 Cycles	30 V	Amber LED	5 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.86
		10	$ 18.03
		25	$ 17.22
		50	$ 16.31
		100	$ 15.70
		250	$ 14.69
		500	$ 12.54
Newark	Each	1	$ 34.79
		5	$ 31.03
		10	$ 29.97
		25	$ 28.32
		50	$ 26.36
		100	$ 23.35
		250	$ 20.94

Description

General part information

UB225SK Series

Pushbutton Switch DPDT Standard, Illuminated Through Hole

Documents

Technical documentation and resources

Datasheet

UB2 Indicators

Datasheet
