ANT1818B00AT1575S

Active

Pulse Electronics

RF ANT 1.6GHZ CER PATCH SOLDER

Search across all available documentation for this part.

Active

Pulse Electronics

RF ANT 1.6GHZ CER PATCH SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	RF Family/Standard	Frequency Range [Max]	Frequency Range [Min]	Applications	Mounting Type	Return Loss	Antenna Type	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Height (Max) [Max]	Height (Max) [Max]	Termination	Gain	Number of Bands	Frequency (Center/Band)	VSWR	Height (Max)	Height (Max) [Max] [z]
Pulse Electronics ANT1818B00AT1575S	Navigation	1.583 GHz	1.577 GHz	GPS	Surface Mount	-10 dB	Ceramic Patch	2 GHz	1 GHz	UHF	2 mm	0.079 in	Solder	2 dBic	1	1.6 GHz	2
Pulse Electronics ANT1818B00DT1516S	Navigation	1.606 GHz	1.575 GHz	GLONASS GPS	Adhesive	-26.781 dB -26.08 dB	Ceramic Patch	2 GHz	1 GHz	UHF			Pin	2.65 dBi 2.79 dBi	2	1.575 GHz 1.602 GHz	2	4 mm	0.157 in
Pulse Electronics ANT1818B00FTGNSSS	Navigation	1.61 GHz	1.559 GHz	GNSS	Adhesive	3 dB	Ceramic Patch	2 GHz	1 GHz	UHF			Pin	-2 dBi	1	1.5845 GHz		4 mm	0.157 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

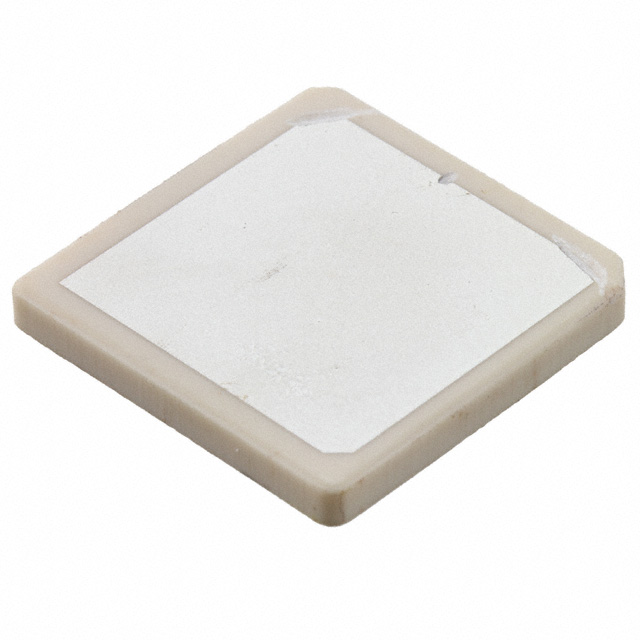

1.6GHz GPS Ceramic Patch RF Antenna 1.577GHz ~ 1.583GHz 2dBic Solder Surface Mount
