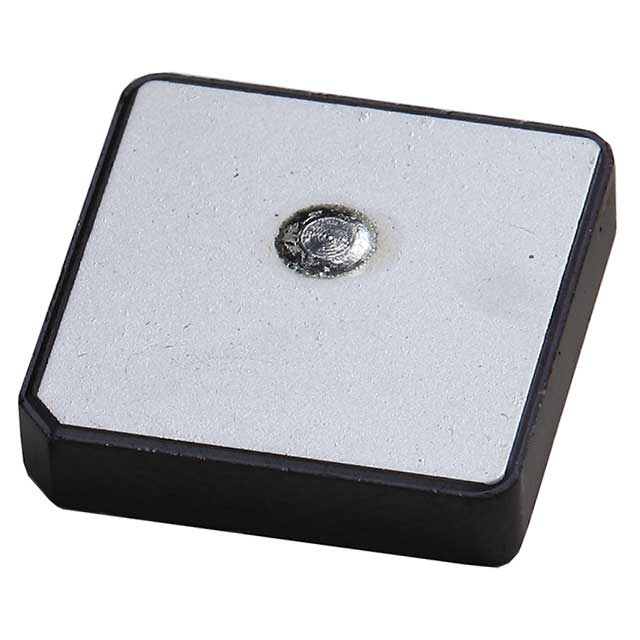

ANT1818B00DT1516S
ActivePulse Electronics
RF ANT 1.575/1.602GHZ CER PATCH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ANT1818B00DT1516S
ActivePulse Electronics
RF ANT 1.575/1.602GHZ CER PATCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT1818B00DT1516S |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | GPS, GLONASS |
| Frequency (Center/Band) | 1.575 GHz, 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.606 GHz |
| Frequency Range [Min] | 1.575 GHz |
| Gain | 2.65 dBi, 2.79 dBi |
| Height (Max) | 4 mm |
| Height (Max) [Max] [z] | 0.157 in |
| Mounting Type | Adhesive |
| Number of Bands | 2 |
| Return Loss | -26.781 dB, -26.08 dB |
| RF Family/Standard | Navigation |
| Termination | Pin |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.12 | |
| 10 | $ 1.98 | |||
| 25 | $ 1.68 | |||
| 80 | $ 1.39 | |||
| 230 | $ 1.19 | |||
| 440 | $ 1.10 | |||
| 945 | $ 1.00 | |||
| 2400 | $ 0.90 | |||
| 4900 | $ 0.90 | |||
Description
General part information
ANT1818 Series
RF ANTENNA GLONASS, GPS Ceramic Patch Pin Adhesive
