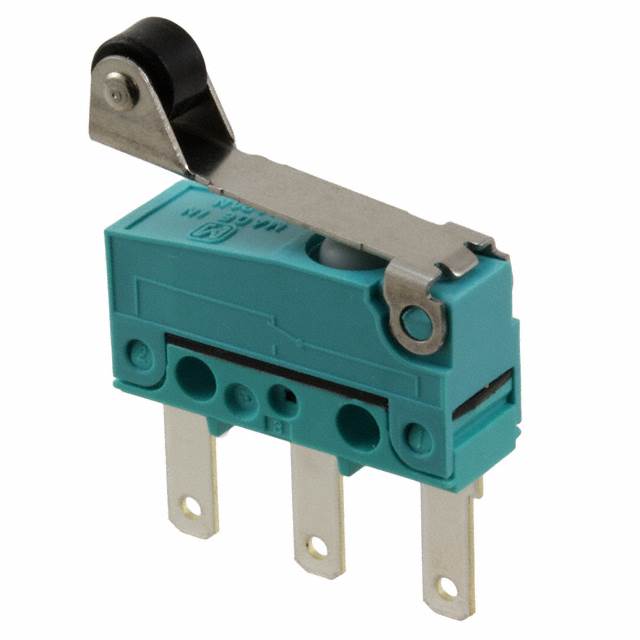

ABS1116549

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 0.1A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes

ABS1116549

Active

Panasonic Electric Works

SWITCH SNAP ACTION SPDT 0.1A 30V

Deep-Dive with AI

DocumentsHow to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABS1116549

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.5 mm
Differential Travel	0.02 in
Electrical Life	200000 Cycles
Ingress Protection	IP50
Mechanical Life	5000000 Cycles
Mounting Type	Chassis Mount
Operating Force	60 gf
Operating Position [custom]	0.571 in
Operating Position [custom]	14.5 mm
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.032 in
Overtravel	0.81 mm
Pretravel	0.1 in
Pretravel	2.5 mm
Release Force	4.079 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - DC	30 V

ABS111 Series

Part	Electrical Life	Pretravel	Pretravel	Switch Function	Actuator Type	Current Rating (Amps)	Mechanical Life	Termination Style	Voltage Rating - AC	Circuit	Overtravel	Overtravel	Voltage Rating - DC	Ingress Protection	Operating Force	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Operating Position	Operating Position	Release Force	Operating Position [custom]	Operating Position [custom]
Panasonic Electric Works ABS1114509	50000 Cycles	0.11 in	2.8 mm	On-Mom	Lever Simulated Roller	2 A	5000000 Cycles	Quick Connect - 0.110" (2.8mm)	125 V	SPDT	1.2 mm	0.047 "	30 V	IP50	55 gf	0.8 mm	0.031 "	85 °C	-40 °C	Chassis Mount	11.7 mm	0.46 in	3.5 gf
Panasonic Electric Works ABS1114513	200000 Cycles	0.11 in	2.8 mm	On-Mom	Lever Simulated Roller	100 mA	5000000 Cycles	Quick Connect - 0.110" (2.8mm)	125 V	SPDT	1.2 mm	0.047 "	30 V	IP50	55 gf	0.8 mm	0.031 "	85 °C	-40 °C	Chassis Mount	11.7 mm	0.46 in	3.5 gf
Panasonic Electric Works ABS1112509	50000 Cycles	0.11 in	2.8 mm	On-Mom	Lever Straight	2 A	5000000 Cycles	Quick Connect - 0.110" (2.8mm)	125 V	SPDT	1.2 mm	0.047 "	30 V	IP50	55 gf	0.8 mm	0.031 "	85 °C	-40 °C	Chassis Mount	8.8 mm	0.345 in	3.5 gf
Panasonic Electric Works ABS1112503	50000 Cycles	0.11 in	2.8 mm	On-Mom	Lever Straight	2 A	5000000 Cycles	Quick Connect - 0.110" (2.8mm)	125 V	SPDT	1.2 mm	0.047 "	30 V	IP50	55 gf	0.8 mm	0.031 "	85 °C	-40 °C	Chassis Mount	8.8 mm	0.345 in	3.5 gf
Panasonic Electric Works ABS1113409	50000 Cycles	0.138 in	3.5 mm	On-Mom	Lever Straight	2 A	5000000 Cycles	Quick Connect - 0.110" (2.8mm)	125 V	SPDT	1.6 mm	0.062 in	30 V	IP50		1 mm	0.04 in	85 °C	-40 °C	Chassis Mount	8.8 mm	0.345 in	2.5 gf
Panasonic Electric Works ABS1110409	50000 Cycles	0.024 in	0.6 mm	On-Mom	Round (Pin Plunger)	2 A	5000000 Cycles	Quick Connect - 0.110" (2.8mm)	125 V	SPDT	0.4 mm	0.015 "	30 V	IP50	100 gf	0.1 mm	0.004 in	85 °C	-40 °C	Chassis Mount	8.4 mm	0.33 in	15 gf
Panasonic Electric Works ABS1110509	50000 Cycles	0.024 in	0.6 mm	On-Mom	Round (Pin Plunger)	2 A	5000000 Cycles	Quick Connect - 0.110" (2.8mm)	125 V	SPDT	0.4 mm	0.015 "	30 V	IP50	150 gf	0.1 mm	0.004 in	85 °C	-40 °C	Chassis Mount	8.4 mm	0.33 in	20 gf
Panasonic Electric Works ABS1114449	200000 Cycles	0.11 in	2.8 mm	On-Mom	Lever Simulated Roller	100 mA	5000000 Cycles	Quick Connect - 0.110" (2.8mm)		SPDT	1.2 mm	0.047 "	30 V	IP50	35 gf	0.8 mm	0.031 "	85 °C	-40 °C	Chassis Mount	11.7 mm	0.46 in	3.059 gf
Panasonic Electric Works ABS1114519	200000 Cycles	0.11 in	2.8 mm	On-Mom	Lever Simulated Roller	100 mA	5000000 Cycles	Quick Connect - 0.110" (2.8mm)	125 V	SPDT	1.2 mm	0.047 "	30 V	IP50	55 gf	0.8 mm	0.031 "	85 °C	-40 °C	Chassis Mount	11.7 mm	0.46 in	3.5 gf
Panasonic Electric Works ABS1116549	200000 Cycles	0.1 in	2.5 mm	On-Mom	Lever Roller	100 mA	5000000 Cycles	Quick Connect - 0.110" (2.8mm)		SPDT	0.81 mm	0.032 in	30 V	IP50	60 gf	0.5 mm	0.02 in	85 °C	-40 °C	Chassis Mount			4.079 gf	0.571 in	14.5 mm
