2PH2R-20-UA

Active

Adam Tech

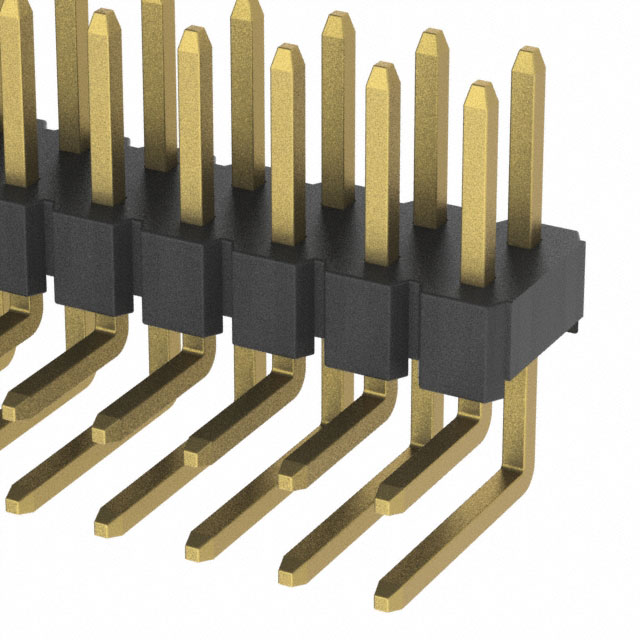

CONN HEADER R/A 20POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

2PH2R-20-UA

Active

Adam Tech

CONN HEADER R/A 20POS 2MM

Deep-Dive with AI

DocumentsECBT2-E224053 Data Connectors, Signal, Control, Power Applications Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2PH2R-20-UA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.154 in
Contact Length - Mating	3.91 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

2PH2R Series

Part	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Material	Contact Finish - Post	Number of Positions	Contact Length - Post [x]	Contact Length - Post	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating	Insulation Color	Mounting Type	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Connector Type	Voltage Rating	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Material	Termination
Adam Tech 2PH2R-06-UA	0.079 in	2 mm	Unshrouded	Brass	Gold	6	0.11 in	2.79 mm	0.157 in	4 mm	UL94 V-0	Black	Through Hole Right Angle	Square	0.079 in	2 mm	Push-Pull	Flash	Flash	Header	250 VAC	2	105 ░C	-55 °C	Male Pin	All	Gold	0.154 in	3.91 mm	Polybutylene Terephthalate (PBT)	Solder
Adam Tech 2PH2R-02-UA	0.079 in	2 mm	Unshrouded	Brass	Gold	2	0.11 in	2.79 mm	0.157 in	4 mm	UL94 V-0	Black	Through Hole Right Angle	Square	0.079 in	2 mm	Push-Pull	Flash	Flash	Header	250 VAC	2	105 ░C	-55 °C	Male Pin	All	Gold	0.154 in	3.91 mm	Polybutylene Terephthalate (PBT)	Solder
Adam Tech 2PH2R-20-UA	0.079 in	2 mm	Unshrouded	Brass	Gold	20	0.11 in	2.79 mm	0.157 in	4 mm	UL94 V-0	Black	Through Hole Right Angle	Square	0.079 in	2 mm	Push-Pull	Flash	Flash	Header	250 VAC	2	105 ░C	-55 °C	Male Pin	All	Gold	0.154 in	3.91 mm	Polybutylene Terephthalate (PBT)	Solder
Adam Tech 2PH2R-08-UA	0.079 in	2 mm	Unshrouded	Brass	Gold	8	0.11 in	2.79 mm	0.157 in	4 mm	UL94 V-0	Black	Through Hole Right Angle	Square	0.079 in	2 mm	Push-Pull	Flash	Flash	Header	250 VAC	2	105 ░C	-55 °C	Male Pin	All	Gold	0.154 in	3.91 mm	Polybutylene Terephthalate (PBT)	Solder
