2PH2R-06-UA

Active

Adam Tech

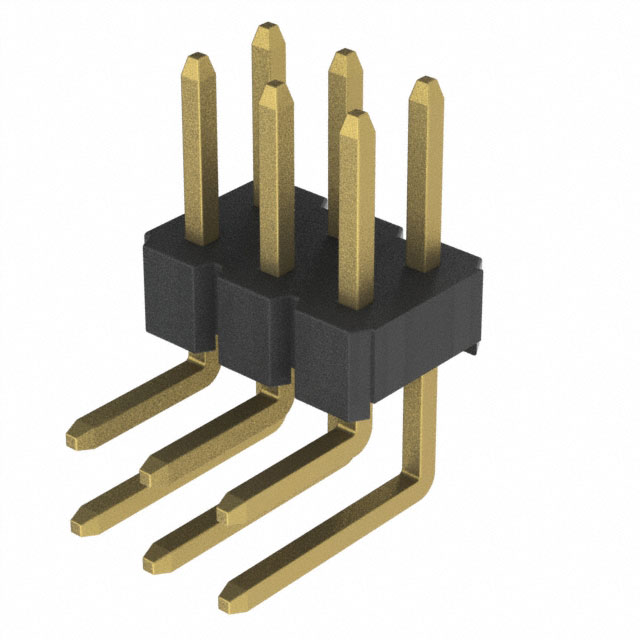

CONN HEADER R/A 6POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

2PH2R-06-UA

Active

Adam Tech

CONN HEADER R/A 6POS 2MM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2PH2R-06-UA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.154 in
Contact Length - Mating	3.91 mm
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	250 VAC

2PH2R Series

Part	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Contact Material	Contact Finish - Post	Number of Positions	Contact Length - Post [x]	Contact Length - Post	Insulation Height [custom]	Insulation Height [custom]	Material Flammability Rating	Insulation Color	Mounting Type	Contact Shape	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Connector Type	Voltage Rating	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Positions Loaded	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating	Insulation Material	Termination
Adam Tech 2PH2R-06-UA	0.079 in	2 mm	Unshrouded	Brass	Gold	6	0.11 in	2.79 mm	0.157 in	4 mm	UL94 V-0	Black	Through Hole Right Angle	Square	0.079 in	2 mm	Push-Pull	Flash	Flash	Header	250 VAC	2	105 ░C	-55 °C	Male Pin	All	Gold	0.154 in	3.91 mm	Polybutylene Terephthalate (PBT)	Solder
Adam Tech 2PH2R-02-UA	0.079 in	2 mm	Unshrouded	Brass	Gold	2	0.11 in	2.79 mm	0.157 in	4 mm	UL94 V-0	Black	Through Hole Right Angle	Square	0.079 in	2 mm	Push-Pull	Flash	Flash	Header	250 VAC	2	105 ░C	-55 °C	Male Pin	All	Gold	0.154 in	3.91 mm	Polybutylene Terephthalate (PBT)	Solder
Adam Tech 2PH2R-20-UA	0.079 in	2 mm	Unshrouded	Brass	Gold	20	0.11 in	2.79 mm	0.157 in	4 mm	UL94 V-0	Black	Through Hole Right Angle	Square	0.079 in	2 mm	Push-Pull	Flash	Flash	Header	250 VAC	2	105 ░C	-55 °C	Male Pin	All	Gold	0.154 in	3.91 mm	Polybutylene Terephthalate (PBT)	Solder
Adam Tech 2PH2R-08-UA	0.079 in	2 mm	Unshrouded	Brass	Gold	8	0.11 in	2.79 mm	0.157 in	4 mm	UL94 V-0	Black	Through Hole Right Angle	Square	0.079 in	2 mm	Push-Pull	Flash	Flash	Header	250 VAC	2	105 ░C	-55 °C	Male Pin	All	Gold	0.154 in	3.91 mm	Polybutylene Terephthalate (PBT)	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.28
		10	$ 0.21
		100	$ 0.16
		500	$ 0.13
		1000	$ 0.12
		5000	$ 0.11
		10000	$ 0.10
