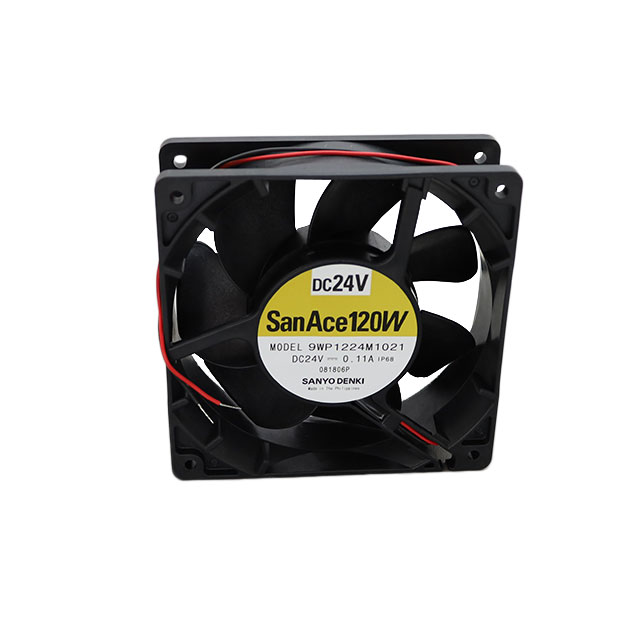

9WP1224M1021

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Numbering System Splash Proof Fan

9WP1224M1021

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Numbering System Splash Proof Fan

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9WP1224M1021

Bearing Type	Ball
Fan Type	Tubeaxial
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Plastic
Power (Watts)	2.64 W
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Width [y]	38 mm

9WP1224 Series

Part	Fan Type	Termination	Ingress Protection	Voltage - Rated	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Bearing Type	Material - Frame	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Noise	Current Rating (Amps)	RPM	Approval Agency	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Lifetime @ Temp.	Features	Operating Temperature [Max]
Sanyo Denki America Inc. 9WP1224M102	Tubeaxial	2 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	38 mm	120 mm	120 mm	2.64 W	Ball	Plastic	Plastic
Sanyo Denki America Inc. 9WP1224H102	Tubeaxial	2 Wire Leads	IP55 - Dust Protected Water Resistant	24 VDC	38 mm	120 mm	120 mm	5.28 W	Ball	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	27.6 VDC	14 VDC	99 CFM	2.77 mł/min	39 dB(A)	0.22 A	2600 RPM	CSA TUV UL	70.5 Pa	0.283 in H2O	360.15 g	0.794 lb	40000 Hrs
Sanyo Denki America Inc. 9WP1224H1D01	Tubeaxial	3 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	38 mm	120 mm	120 mm	5.28 W	Ball	Plastic	Plastic		70 °C	-20 °C	-20 C	27.6 VDC	14 VDC	99 CFM	2.77 mł/min	39 dB(A)	0.22 A	2600 RPM	CSA TUV UL	70.5 Pa	0.283 in H2O	360.15 g	0.794 lb	40000 Hrs	Locked Rotor Sensor	70 °C
Sanyo Denki America Inc. 9WP1224M1021	Tubeaxial	2 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	38 mm	120 mm	120 mm	2.64 W	Ball	Plastic	Plastic
Sanyo Denki America Inc. 9WP1224M101	Tubeaxial	3 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	38 mm	120 mm	120 mm	2.64 W	Ball	Plastic	Plastic																		Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP1224H1011	Tubeaxial	3 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	38 mm	120 mm	120 mm	5.28 W	Ball	Plastic	Plastic		70 °C	-20 °C	-20 C	27.6 VDC	14 VDC			39 dB(A)	0.22 A	2600 RPM	CSA TUV UL	70.5 Pa	0.283 in H2O	360.15 g	0.794 lb	40000 Hrs	Speed Sensor (Tach)	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 73.04
		21	$ 55.16
		42	$ 54.26
