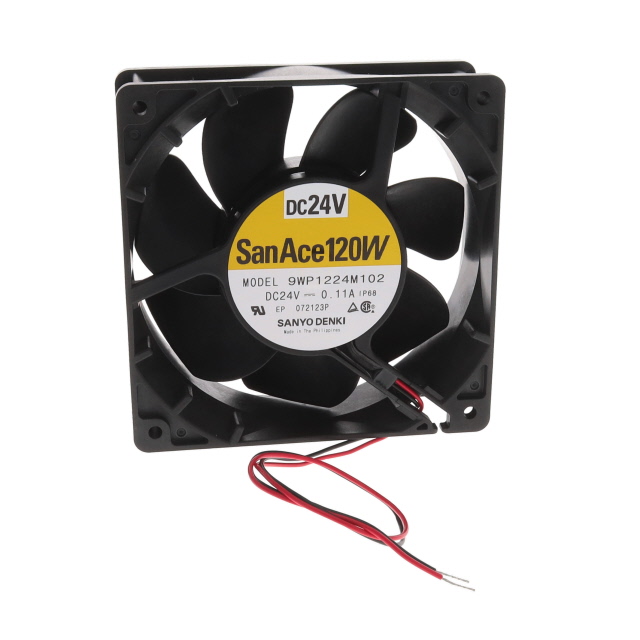

9WP1224M102

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

9WP1224M102

Active

Sanyo Denki America Inc.

FAN AXIAL 120X38MM 24VDC WIRE

Deep-Dive with AI

DocumentsRotor Balancing Handling Instructions for Fan Motors +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9WP1224M102

Bearing Type	Ball
Fan Type	Tubeaxial
Ingress Protection	IP68 - Dust Tight, Waterproof
Material - Blade	Plastic
Material - Frame	Plastic
Power (Watts)	2.64 W
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Width [y]	38 mm

9WP1224 Series

Part	Fan Type	Termination	Ingress Protection	Voltage - Rated	Width [y]	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Bearing Type	Material - Frame	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Air Flow	Noise	Current Rating (Amps)	RPM	Approval Agency	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Lifetime @ Temp.	Features	Operating Temperature [Max]
Sanyo Denki America Inc. 9WP1224M102	Tubeaxial	2 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	38 mm	120 mm	120 mm	2.64 W	Ball	Plastic	Plastic
Sanyo Denki America Inc. 9WP1224H102	Tubeaxial	2 Wire Leads	IP55 - Dust Protected Water Resistant	24 VDC	38 mm	120 mm	120 mm	5.28 W	Ball	Plastic	Plastic	70 °C	70 °C	-10 °C	-10 °C	27.6 VDC	14 VDC	99 CFM	2.77 mł/min	39 dB(A)	0.22 A	2600 RPM	CSA TUV UL	70.5 Pa	0.283 in H2O	360.15 g	0.794 lb	40000 Hrs
Sanyo Denki America Inc. 9WP1224H1D01	Tubeaxial	3 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	38 mm	120 mm	120 mm	5.28 W	Ball	Plastic	Plastic		70 °C	-20 °C	-20 C	27.6 VDC	14 VDC	99 CFM	2.77 mł/min	39 dB(A)	0.22 A	2600 RPM	CSA TUV UL	70.5 Pa	0.283 in H2O	360.15 g	0.794 lb	40000 Hrs	Locked Rotor Sensor	70 °C
Sanyo Denki America Inc. 9WP1224M1021	Tubeaxial	2 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	38 mm	120 mm	120 mm	2.64 W	Ball	Plastic	Plastic
Sanyo Denki America Inc. 9WP1224M101	Tubeaxial	3 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	38 mm	120 mm	120 mm	2.64 W	Ball	Plastic	Plastic																		Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9WP1224H1011	Tubeaxial	3 Wire Leads	IP68 - Dust Tight Waterproof	24 VDC	38 mm	120 mm	120 mm	5.28 W	Ball	Plastic	Plastic		70 °C	-20 °C	-20 C	27.6 VDC	14 VDC			39 dB(A)	0.22 A	2600 RPM	CSA TUV UL	70.5 Pa	0.283 in H2O	360.15 g	0.794 lb	40000 Hrs	Speed Sensor (Tach)	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 46.19
		21	$ 42.19
		42	$ 40.59
		63	$ 37.92
		105	$ 34.98
		252	$ 34.44
