SS65100-038F

Active

BEL MAGNETIC SOLUTIONS

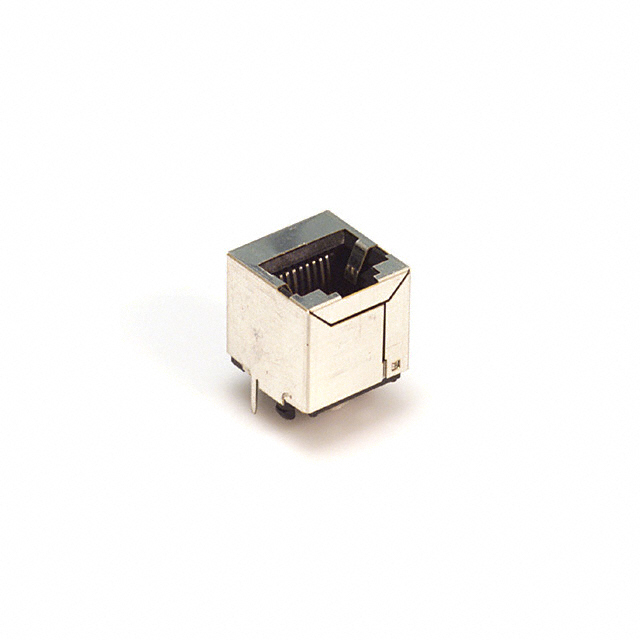

MODULAR CONNECTOR, RJ50 JACK, 1 X 1 (PORT), 10P10C, THROUGH HOLE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDrawing EN Product Change Notice EN

SS65100-038F

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ50 JACK, 1 X 1 (PORT), 10P10C, THROUGH HOLE MOUNT

Deep-Dive with AI

DocumentsDrawing EN Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS65100-038F

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts [custom]	10
Number of Positions/Contacts [custom]	10
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Shielding	Shielded
Tab Direction	User Selectable
Termination	Solder

SS65100 Series

Part	Number of Positions/Contacts	Orientation	Number of Rows	Tab Direction	Connector Type	Termination	Housing Material	Contact Material	Shielding	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	LED Color	Features	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
BEL MAGNETIC SOLUTIONS SS65100-024F	8p8c (RJ45 Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Shielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED
BEL MAGNETIC SOLUTIONS SS65100-054F	8p8c (RJ45 Ethernet)	Vertical			Jack				Unshielded
BEL MAGNETIC SOLUTIONS SS65100-030F		Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED	Board Lock Panel Stops	10	10
BEL MAGNETIC SOLUTIONS SS65100-009F	8p8c (RJ45 Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED
BEL MAGNETIC SOLUTIONS SS65100-005F	8p8c (RJ45 Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED	Board Lock Panel Stops
BEL MAGNETIC SOLUTIONS SS65100-024G	8p8c (RJ45 Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Shielded	1	85 °C	-40 °C	Gold	Through Hole	1.27 µm	50 µin	Does Not Contain LED	Board Lock EPP918A
BEL MAGNETIC SOLUTIONS SS65100-031F		Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED		10	10
BEL MAGNETIC SOLUTIONS SS65100-038F		Vertical	1	User Selectable	Jack	Solder		Copper Alloy	Shielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED		10	10
