SS65100-030F

Active

BEL MAGNETIC SOLUTIONS

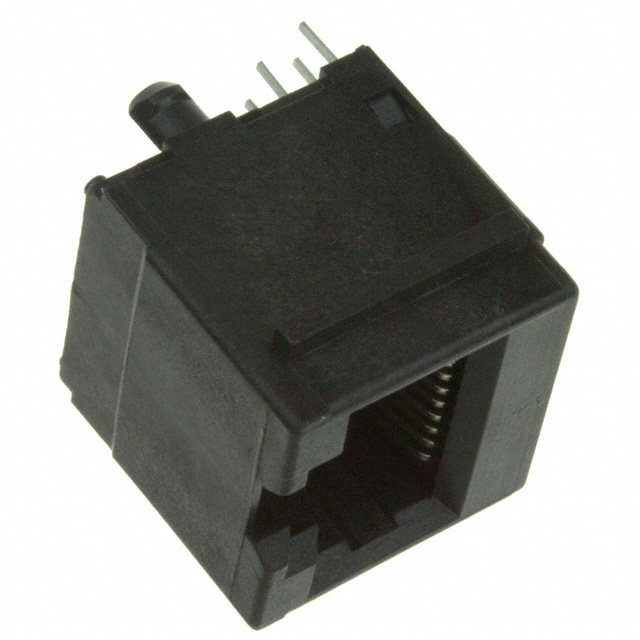

CONN MOD JACK 10P10C VERT UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

SS65100-030F

Active

BEL MAGNETIC SOLUTIONS

CONN MOD JACK 10P10C VERT UNSHLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS65100-030F

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Features	Board Lock, Panel Stops
Housing Material	Thermoplastic
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts [custom]	10
Number of Positions/Contacts [custom]	10
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

SS65100 Series

Part	Number of Positions/Contacts	Orientation	Number of Rows	Tab Direction	Connector Type	Termination	Housing Material	Contact Material	Shielding	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	LED Color	Features	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]
BEL MAGNETIC SOLUTIONS SS65100-024F	8p8c (RJ45 Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Shielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED
BEL MAGNETIC SOLUTIONS SS65100-054F	8p8c (RJ45 Ethernet)	Vertical			Jack				Unshielded
BEL MAGNETIC SOLUTIONS SS65100-030F		Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED	Board Lock Panel Stops	10	10
BEL MAGNETIC SOLUTIONS SS65100-009F	8p8c (RJ45 Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED
BEL MAGNETIC SOLUTIONS SS65100-005F	8p8c (RJ45 Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED	Board Lock Panel Stops
BEL MAGNETIC SOLUTIONS SS65100-024G	8p8c (RJ45 Ethernet)	Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Shielded	1	85 °C	-40 °C	Gold	Through Hole	1.27 µm	50 µin	Does Not Contain LED	Board Lock EPP918A
BEL MAGNETIC SOLUTIONS SS65100-031F		Vertical	1	User Selectable	Jack	Solder	Thermoplastic	Copper Alloy	Unshielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED		10	10
BEL MAGNETIC SOLUTIONS SS65100-038F		Vertical	1	User Selectable	Jack	Solder		Copper Alloy	Shielded	1	85 °C	-40 °C	Gold	Through Hole	0.76 Ám	30 Áin	Does Not Contain LED		10	10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.26
		10	$ 2.49
		25	$ 2.24
		50	$ 2.08
		100	$ 1.92
		250	$ 1.74
		500	$ 1.62
		1000	$ 1.51
		2500	$ 1.38

Description

General part information

SS65100 Series

Jack Modular Connector 10p10c (RJ50) Vertical Unshielded
