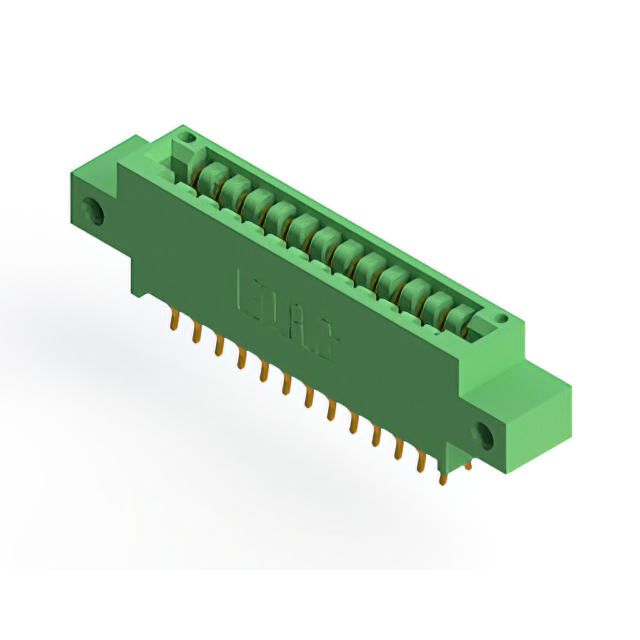

346-026-556-812

Active

EDAC Inc.

3.18MM CLAMP BOARD 26P -40℃~+105℃ P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

346-026-556-812

Active

EDAC Inc.

3.18MM CLAMP BOARD 26P -40℃~+105℃ P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-026-556-812

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Extender
Flange Feature	Side Mount Opening, Unthreaded
Flange Feature	3.25 mm
Flange Feature	0.128 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Board Edge, Straddle Mount
Number of Positions	26
Number of Positions/Bay/Row [custom]	13
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

346-026 Series

...

Part	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination Rows	Color	Card Type	Read Out	Mounting Type	Gender	Pitch [x]	Pitch [x]	Material - Insulation	Number of Positions	Flange Feature	Flange Feature	Number of Positions/Bay/Row [custom]	Number of Rows	Contact Material	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 346-026-500-802	Solder Eyelet(s)	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	-40 °C	105 ░C	Gold	2	Green	Non Specified - Dual Edge	Dual	Through Hole	Female	0.125 in	3.18 mm	Polyester Thermoplastic	26	3.25 mm	0.128 in	13	2	Copper Alloy
EDAC Inc. 346-026-522-208	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	-40 °C	105 ░C	Gold	2	Green	Non Specified - Dual Edge	Dual	Through Hole	Female	0.125 in	3.18 mm	Polyester Thermoplastic	26			13	2	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 346-026-522-602	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	-40 °C	105 ░C	Gold	1	Green	Non Specified - Single Edge	Single	Through Hole	Female	0.125 in	3.18 mm	Polyester Thermoplastic	26	3.25 mm	0.128 in	26	1	Copper Alloy
EDAC Inc. 346-026-526-101	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	-40 °C	105 ░C	Gold	1	Green	Non Specified - Single Edge	Single	Through Hole	Female	0.125 in	3.18 mm	Polyester Thermoplastic	26			26	1	Copper Alloy
EDAC Inc. 346-026-526-212	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	-40 °C	105 ░C	Gold	2	Green	Non Specified - Dual Edge	Dual	Through Hole	Female	0.125 in	3.18 mm	Polyester Thermoplastic	26			13	2	Copper Alloy	Flush Mount Side Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 346-026-556-812	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	-40 °C	105 ░C	Gold	2	Green	Non Specified - Dual Edge	Dual	Board Edge Straddle Mount	Female	0.125 in	3.18 mm	Polyester Thermoplastic	26	3.25 mm	0.128 in	13	2	Copper Alloy	Side Mount Opening Unthreaded			Card Extender
EDAC Inc. 346-026-500-803	Solder Eyelet(s)	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	-40 °C	105 ░C	Gold	2	Green	Non Specified - Dual Edge	Dual	Through Hole	Female	0.125 in	3.18 mm	Polyester Thermoplastic	26			13	2	Copper Alloy	Floating Bobbin Top Mount Opening	2.95 mm	0.116 in
EDAC Inc. 346-026-521-202	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	-40 °C	105 ░C	Gold	2	Green	Non Specified - Dual Edge	Dual	Through Hole	Female	0.125 in	3.18 mm	Polyester Thermoplastic	26			13	2	Copper Alloy	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 346-026-558-201	Solder Wire Wrap	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	-40 °C	105 ░C	Gold	2	Green	Non Specified - Dual Edge	Dual	Through Hole Right Angle	Female	0.125 in	3.18 mm	Polyester Thermoplastic	26			13	2	Copper Alloy
EDAC Inc. 346-026-522-658	Solder	10 Áin	0.25 Ám	1.37 mm	0.054 "	1.78 mm	0.07 in	Cantilever	-40 °C	105 ░C	Gold	1	Green	Non Specified - Single Edge	Single	Through Hole	Female	0.125 in	3.18 mm	Polyester Thermoplastic	26			26	1	Copper Alloy	4-40 Threaded Insert Top Mount Opening			Card Guides

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 11.31
LCSC	Piece	1	$ 12.26
		200	$ 4.74
		500	$ 4.58
		1000	$ 4.49

Description

General part information

346-026 Series

26 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
