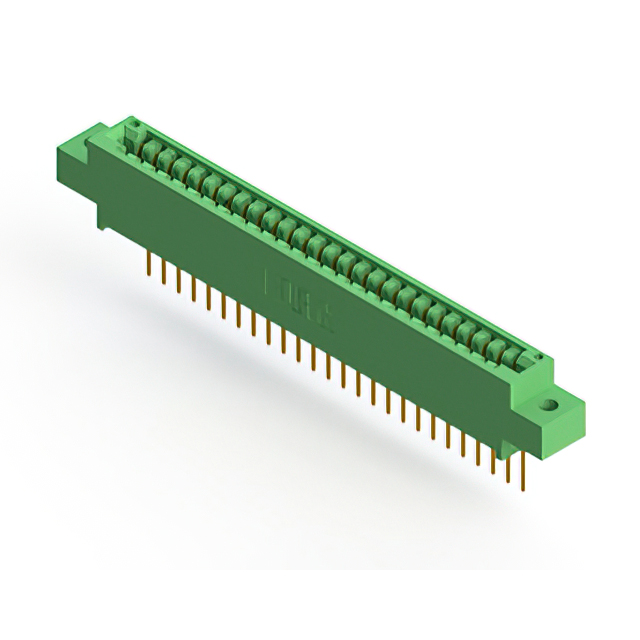

346-026-522-602
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
346-026-522-602
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 26 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 346-026-522-602 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
346-026 Series
...
| Part | Termination | Contact Finish Thickness | Contact Finish Thickness | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Termination Rows | Color | Card Type | Read Out | Mounting Type | Gender | Pitch [x] | Pitch [x] | Material - Insulation | Number of Positions | Flange Feature | Flange Feature | Number of Positions/Bay/Row [custom] | Number of Rows | Contact Material | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Gold | 2 | Green | Non Specified - Dual Edge | Dual | Through Hole | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | 26 | 3.25 mm | 0.128 in | 13 | 2 | Copper Alloy | ||||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Gold | 2 | Green | Non Specified - Dual Edge | Dual | Through Hole | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | 26 | 13 | 2 | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | |||||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Gold | 1 | Green | Non Specified - Single Edge | Single | Through Hole | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | 26 | 3.25 mm | 0.128 in | 26 | 1 | Copper Alloy | ||||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Gold | 1 | Green | Non Specified - Single Edge | Single | Through Hole | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | 26 | 26 | 1 | Copper Alloy | ||||||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Gold | 2 | Green | Non Specified - Dual Edge | Dual | Through Hole | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | 26 | 13 | 2 | Copper Alloy | Flush Mount Side Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Gold | 2 | Green | Non Specified - Dual Edge | Dual | Board Edge Straddle Mount | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | 26 | 3.25 mm | 0.128 in | 13 | 2 | Copper Alloy | Side Mount Opening Unthreaded | Card Extender | ||
EDAC Inc. | Solder Eyelet(s) | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Gold | 2 | Green | Non Specified - Dual Edge | Dual | Through Hole | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | 26 | 13 | 2 | Copper Alloy | Floating Bobbin Top Mount Opening | 2.95 mm | 0.116 in | |||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Gold | 2 | Green | Non Specified - Dual Edge | Dual | Through Hole | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | 26 | 13 | 2 | Copper Alloy | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | |||
EDAC Inc. | Solder Wire Wrap | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Gold | 2 | Green | Non Specified - Dual Edge | Dual | Through Hole Right Angle | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | 26 | 13 | 2 | Copper Alloy | ||||||
EDAC Inc. | Solder | 10 Áin | 0.25 Ám | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Cantilever | -40 °C | 105 ░C | Gold | 1 | Green | Non Specified - Single Edge | Single | Through Hole | Female | 0.125 in | 3.18 mm | Polyester Thermoplastic | 26 | 26 | 1 | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
346-026 Series
26 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Green
