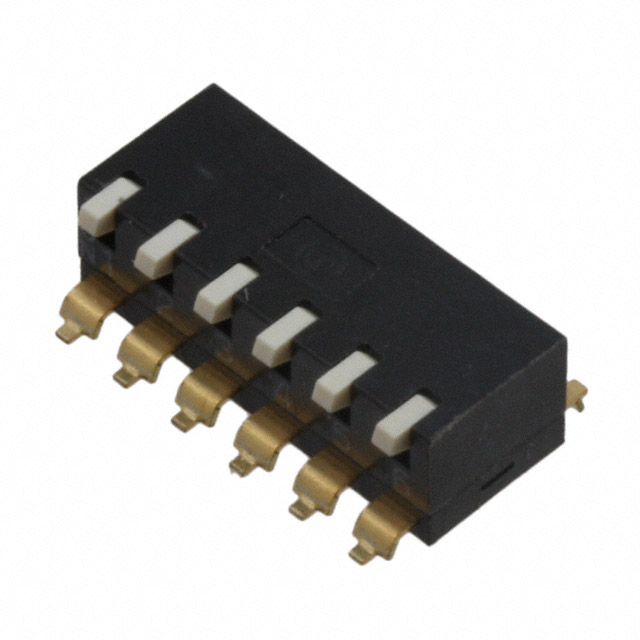

A6SR-6104-P

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6SR-6104-P

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6SR-6104-P

Actuator Level	Raised
Actuator Type	Piano
Circuit	SPST
Contact Finish	Gold
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Height Above Board [z]	5 mm
Height Above Board [z]	0.197 in
Length [x]	0.596 "
Length [x]	15.14 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

A6SR Series

Part	Electrical Life	Actuator Level	Termination Style	Actuator Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Voltage Rating	Mounting Type	Current Rating (Amps)	Length [x]	Length [x]
Omron Electronics Inc-EMC Div A6SR-4101-P	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C	10.06 mm	0.396 "	5 mm	0.197 in	Gold	4	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA
Omron Electronics Inc-EMC Div A6SR-4104-P	1000 Cycles	Raised	Gull Wing	Piano	SPST	-20 C	70 °C	10.06 mm	0.396 "	5 mm	0.197 in	Gold	4	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA
Omron Electronics Inc-EMC Div A6SR-0101	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C	25.3 mm	0.996 in	5 mm	0.197 in	Gold	10	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA
Omron Electronics Inc-EMC Div A6SR-2101	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C			5 mm	0.197 in	Gold	2	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA	0.196 in	4.98 mm
Omron Electronics Inc-EMC Div A6SR-4104	1000 Cycles	Raised	Gull Wing	Piano	SPST	-20 C	70 °C	10.06 mm	0.396 "	5 mm	0.197 in	Gold	4	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA
Omron Electronics Inc-EMC Div A6SR-8101-R100	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C	20.22 mm	0.796 "	5 mm	0.197 in	Gold	8	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA
Omron Electronics Inc-EMC Div A6SR-2101-P	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C			5 mm	0.197 in	Gold	2	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA	0.196 in	4.98 mm
Omron Electronics Inc-EMC Div A6SR-6101	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C			5 mm	0.197 in	Gold	6	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA	0.596 "	15.14 mm
Omron Electronics Inc-EMC Div A6SR-6104-P	1000 Cycles	Raised	Gull Wing	Piano	SPST	-20 C	70 °C			5 mm	0.197 in	Gold	6	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA	0.596 "	15.14 mm
Omron Electronics Inc-EMC Div A6SR-0104	1000 Cycles	Raised	Gull Wing	Piano	SPST	-20 C	70 °C	25.3 mm	0.996 in	5 mm	0.197 in	Gold	10	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA
