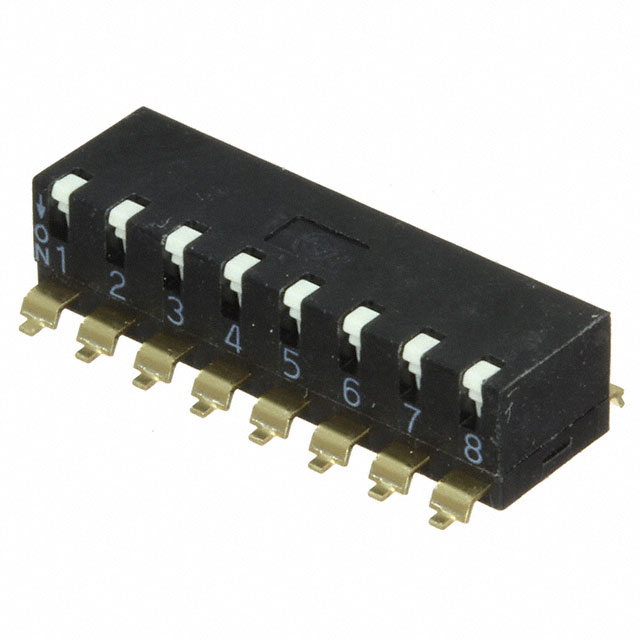

A6SR-8101-R100

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet How to Read Date Codes

A6SR-8101-R100

Active

Omron Electronics Inc-EMC Div

SWITCH PIANO DIP SPST 0.025A 24V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A6SR-8101-R100

Actuator Level	Flush, Recessed
Actuator Type	Piano
Circuit	SPST
Contact Finish	Gold
Current Rating (Amps)	25 mA
Electrical Life	1000 Cycles
Height Above Board [z]	5 mm
Height Above Board [z]	0.197 in
Length	0.796 "
Length	20.22 mm
Mounting Type	Surface Mount, Right Angle
Number of Positions	8
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	Gull Wing
Voltage Rating	24 VDC
Washable	False

A6SR Series

Part	Electrical Life	Actuator Level	Termination Style	Actuator Type	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Length	Length	Height Above Board [z]	Height Above Board [z]	Contact Finish	Number of Positions	Pitch [x]	Pitch	Pitch [x]	Voltage Rating	Mounting Type	Current Rating (Amps)	Length [x]	Length [x]
Omron Electronics Inc-EMC Div A6SR-4101-P	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C	10.06 mm	0.396 "	5 mm	0.197 in	Gold	4	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA
Omron Electronics Inc-EMC Div A6SR-4104-P	1000 Cycles	Raised	Gull Wing	Piano	SPST	-20 C	70 °C	10.06 mm	0.396 "	5 mm	0.197 in	Gold	4	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA
Omron Electronics Inc-EMC Div A6SR-0101	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C	25.3 mm	0.996 in	5 mm	0.197 in	Gold	10	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA
Omron Electronics Inc-EMC Div A6SR-2101	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C			5 mm	0.197 in	Gold	2	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA	0.196 in	4.98 mm
Omron Electronics Inc-EMC Div A6SR-4104	1000 Cycles	Raised	Gull Wing	Piano	SPST	-20 C	70 °C	10.06 mm	0.396 "	5 mm	0.197 in	Gold	4	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA
Omron Electronics Inc-EMC Div A6SR-8101-R100	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C	20.22 mm	0.796 "	5 mm	0.197 in	Gold	8	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA
Omron Electronics Inc-EMC Div A6SR-2101-P	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C			5 mm	0.197 in	Gold	2	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA	0.196 in	4.98 mm
Omron Electronics Inc-EMC Div A6SR-6101	1000 Cycles	Flush Recessed	Gull Wing	Piano	SPST	-20 C	70 °C			5 mm	0.197 in	Gold	6	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA	0.596 "	15.14 mm
Omron Electronics Inc-EMC Div A6SR-6104-P	1000 Cycles	Raised	Gull Wing	Piano	SPST	-20 C	70 °C			5 mm	0.197 in	Gold	6	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA	0.596 "	15.14 mm
Omron Electronics Inc-EMC Div A6SR-0104	1000 Cycles	Raised	Gull Wing	Piano	SPST	-20 C	70 °C	25.3 mm	0.996 in	5 mm	0.197 in	Gold	10	0.1 in	Full	2.54 mm	24 VDC	Surface Mount Right Angle	25 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 2.33
	Digi-Reel®	1	$ 2.33
	Tape & Reel (TR)	700	$ 1.47
