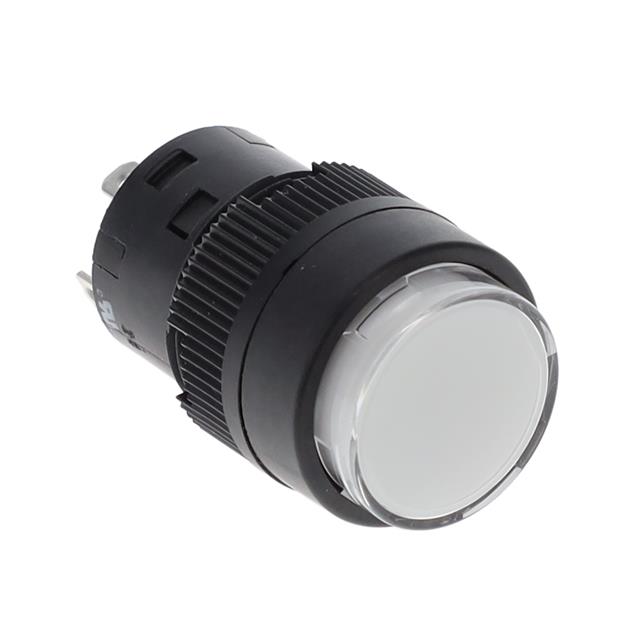

YB15CKW01-2CF24-JB

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB15CKW01-2CF24-JB

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB15CKW01-2CF24-JB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Stainless Steel
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	24 V
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB15CK Series

Part	Panel Cutout Dimensions [diameter]	Mechanical Life	Voltage Rating - DC	Features	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - AC	Color - Actuator/Cap	Mounting Type	Illumination Type, Color	Actuator Type	Type	Electrical Life	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Actuator Marking	Illumination Voltage (Nominal)	Circuit
NKK Switches YB15CKW01-2CF24-JB	16 mm	1000000 Cycles	30 V	Stainless Steel	50 °C	-25 °C	On-Mom	125 V	Clear	Panel Mount Front	Green/Red LED	Button Round	Illuminated Standard	100000 Cycles	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	24 V	SPDT
NKK Switches YB15CKG01-JB	16 mm	1000000 Cycles	28 V	Stainless Steel	70 °C	-25 °C	On-Mom	28 V	Clear	Panel Mount Front		Button Round	Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm	No Marking		SPDT
NKK Switches YB15CKG01-5C12-JB	16 mm	1000000 Cycles	28 V		50 °C	-25 °C	On-Mom	28 V	Clear	Panel Mount Front	LED Red	Button Round	Illuminated Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm		12 VDC	SPDT
NKK Switches YB15CKW01-5D-JB	16 mm	1000000 Cycles	30 V	Stainless Steel	50 °C	-25 °C	On-Mom	125 V	Clear	Panel Mount Front	Amber LED	Button Round	Illuminated Standard	100000 Cycles	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	2 VDC	SPDT
NKK Switches YB15CKW03-6F-JB	16 mm	1000000 Cycles	30 V	Stainless Steel	50 °C	-25 °C	On-Mom	125 V	Clear	Panel Mount Front	Green LED	Button Round	Illuminated Standard	100000 Cycles	3 A		PC Pin		No Marking	3.3 VDC	SPDT
NKK Switches YB15CKG01-5F24-JF	16 mm	1000000 Cycles	28 V	Stainless Steel	50 °C	-25 °C	On-Mom	28 V	Clear	Panel Mount Front	Green LED	Button Round	Illuminated Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm	No Marking	24 V	SPDT
NKK Switches YB15CKW01-1D05-JB	16 mm	1000000 Cycles	30 V	Stainless Steel	50 °C	-25 °C	On-Mom	125 V	Clear	Panel Mount Front	Amber LED	Button Round	Illuminated Standard	100000 Cycles	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	5 VDC	SPDT
NKK Switches YB15CKG01-5C12-JC	16 mm	1000000 Cycles	28 V	Stainless Steel	50 °C	-25 °C	On-Mom	28 V	Clear (Red Filter/Diffuser)	Panel Mount Front	LED Red	Button Round	Illuminated Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm	No Marking	12 VDC	SPDT
NKK Switches YB15CKG01-1F02-JE	16 mm	1000000 Cycles	28 V	Stainless Steel	50 °C	-25 °C	On-Mom	28 V	Clear (Yellow Filter/Diffuser)	Panel Mount Front	Green LED	Button Round	Illuminated Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm	No Marking	2 VDC	SPDT
NKK Switches YB15CKG01-5C-JB	16 mm	1000000 Cycles	28 V		50 °C	-25 °C	On-Mom	28 V	Clear	Panel Mount Front	LED Red	Button Round	Illuminated Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm		1.9 VDC	SPDT
