YB15CKG01-JB

Active

NKK Switches

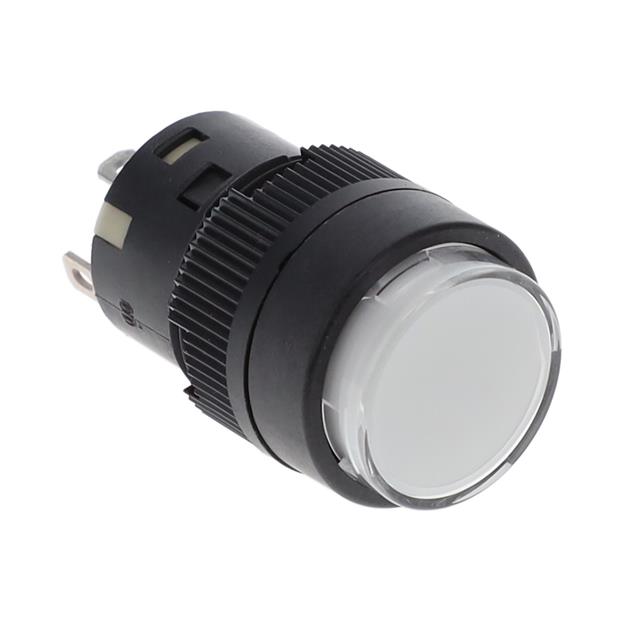

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

YB15CKG01-JB

Active

NKK Switches

SWITCH PUSH SPDT 0.4VA 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB15CKG01-JB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	0.4 VA
Electrical Life	100000 Cycles
Features	Stainless Steel
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

YB15CK Series

Part	Panel Cutout Dimensions [diameter]	Mechanical Life	Voltage Rating - DC	Features	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - AC	Color - Actuator/Cap	Mounting Type	Illumination Type, Color	Actuator Type	Type	Electrical Life	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Actuator Marking	Illumination Voltage (Nominal)	Circuit
NKK Switches YB15CKW01-2CF24-JB	16 mm	1000000 Cycles	30 V	Stainless Steel	50 °C	-25 °C	On-Mom	125 V	Clear	Panel Mount Front	Green/Red LED	Button Round	Illuminated Standard	100000 Cycles	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	24 V	SPDT
NKK Switches YB15CKG01-JB	16 mm	1000000 Cycles	28 V	Stainless Steel	70 °C	-25 °C	On-Mom	28 V	Clear	Panel Mount Front		Button Round	Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm	No Marking		SPDT
NKK Switches YB15CKG01-5C12-JB	16 mm	1000000 Cycles	28 V		50 °C	-25 °C	On-Mom	28 V	Clear	Panel Mount Front	LED Red	Button Round	Illuminated Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm		12 VDC	SPDT
NKK Switches YB15CKW01-5D-JB	16 mm	1000000 Cycles	30 V	Stainless Steel	50 °C	-25 °C	On-Mom	125 V	Clear	Panel Mount Front	Amber LED	Button Round	Illuminated Standard	100000 Cycles	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	2 VDC	SPDT
NKK Switches YB15CKW03-6F-JB	16 mm	1000000 Cycles	30 V	Stainless Steel	50 °C	-25 °C	On-Mom	125 V	Clear	Panel Mount Front	Green LED	Button Round	Illuminated Standard	100000 Cycles	3 A		PC Pin		No Marking	3.3 VDC	SPDT
NKK Switches YB15CKG01-5F24-JF	16 mm	1000000 Cycles	28 V	Stainless Steel	50 °C	-25 °C	On-Mom	28 V	Clear	Panel Mount Front	Green LED	Button Round	Illuminated Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm	No Marking	24 V	SPDT
NKK Switches YB15CKW01-1D05-JB	16 mm	1000000 Cycles	30 V	Stainless Steel	50 °C	-25 °C	On-Mom	125 V	Clear	Panel Mount Front	Amber LED	Button Round	Illuminated Standard	100000 Cycles	3 A	0.11 in	Quick Connect Solder	2.8 mm	No Marking	5 VDC	SPDT
NKK Switches YB15CKG01-5C12-JC	16 mm	1000000 Cycles	28 V	Stainless Steel	50 °C	-25 °C	On-Mom	28 V	Clear (Red Filter/Diffuser)	Panel Mount Front	LED Red	Button Round	Illuminated Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm	No Marking	12 VDC	SPDT
NKK Switches YB15CKG01-1F02-JE	16 mm	1000000 Cycles	28 V	Stainless Steel	50 °C	-25 °C	On-Mom	28 V	Clear (Yellow Filter/Diffuser)	Panel Mount Front	Green LED	Button Round	Illuminated Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm	No Marking	2 VDC	SPDT
NKK Switches YB15CKG01-5C-JB	16 mm	1000000 Cycles	28 V		50 °C	-25 °C	On-Mom	28 V	Clear	Panel Mount Front	LED Red	Button Round	Illuminated Standard	100000 Cycles	0.4 VA	0.11 in	Quick Connect Solder	2.8 mm		1.9 VDC	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.54
		10	$ 11.33
		100	$ 9.88
		1000	$ 7.50

Description

General part information

YB15CK Series

Pushbutton Switch SPDT Standard Panel Mount, Front
