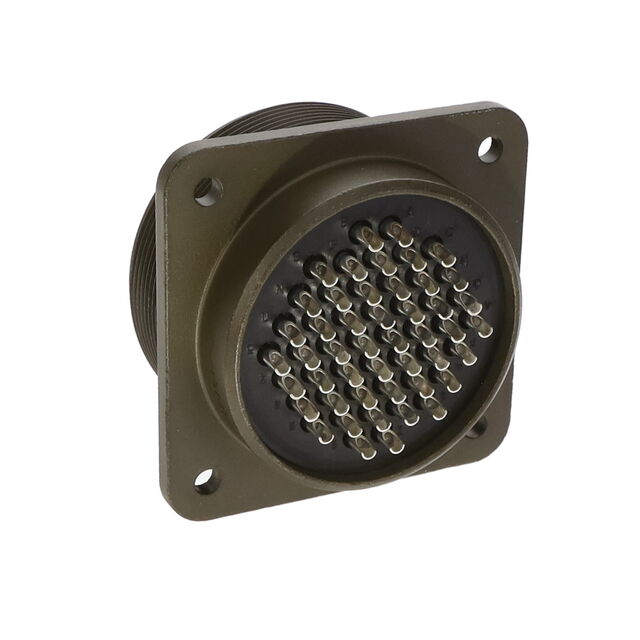

MS3102A36-10P

Active

Amphenol Industrial Operations

CONN RCPT MALE 48P SILV SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN RCPT MALE 48P SILV SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102A36-10P

Applications	Military, Marine
Cable Opening [custom]	2.062 in
Cable Opening [custom]	52.37 mm
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	48
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	36-10
Shielding	Unshielded

Part	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Finish	Contact Material	Shielding	Insert Material	Current Rating (Amps)	Color	Contact Finish - Mating	Qualification	Mounting Feature	Orientation	Applications	Primary Material	Connector Type	Shell Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert
Amphenol Industrial Operations MS3102A36-1S
Amphenol Industrial Operations MS3102A36-7S	Military	-55 °C	125 °C	Environment Resistant	Olive Drab Chromate over Cadmium	Copper Alloy	Unshielded	Neoprene	13 A 23 A	Olive Drab	Silver	MIL-DTL-5015	Flange	N	Marine Military	Metal	Receptacle Female Sockets	Aluminum Alloy	36	7
Amphenol Industrial Operations MS3102A36-1PX
Amphenol Industrial Operations MS3102A36-15S
Amphenol Industrial Operations MS3102A36-16S
Amphenol Industrial Operations MS3102A36-14S
Amphenol Industrial Operations MS3102A36-10SW
Amphenol Industrial Operations MS3102A36-12P
Amphenol Industrial Operations MS3102A36-5P	Military	-55 °C	125 °C	Environment Resistant	Olive Drab Chromate over Cadmium	Copper Alloy	Unshielded	Neoprene	150 A	Olive Drab	Silver	MIL-DTL-5015	Flange	N	Marine Military	Metal	Male Pins Receptacle	Aluminum Alloy	5	36	4
Amphenol Industrial Operations MS3102A36-10P		-55 °C	125 °C		Olive Drab Chromate over Cadmium	Copper Alloy	Unshielded	Neoprene		Olive Drab	Silver	MIL-5015	Flange	N	Marine Military	Metal	Male Pins Receptacle	Aluminum Alloy			48	2.062 in	52.37 mm	36-10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48 Position Circular Connector Receptacle, Male Pins Solder Cup
