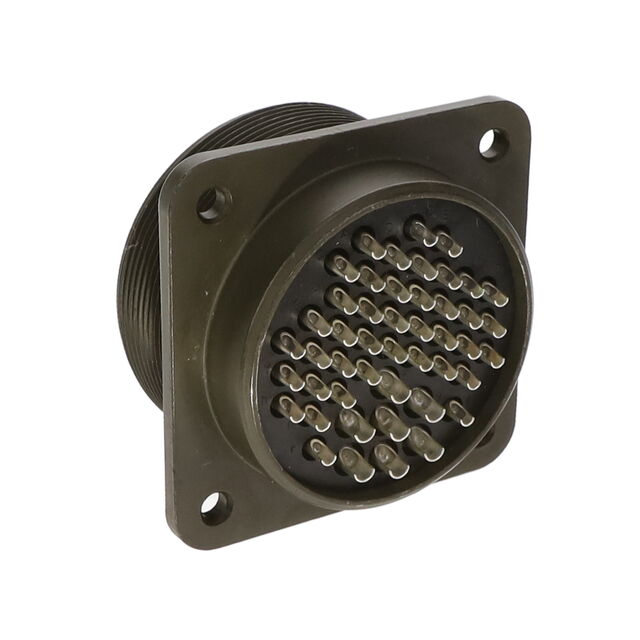

MS3102A36-7S

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

MIL-5015 MS/AC THREADED RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102A36-7S

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A, 23 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	36
Shell Size - Insert [Min]	7
Shielding	Unshielded

Part	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Shell Finish	Contact Material	Shielding	Insert Material	Current Rating (Amps)	Color	Contact Finish - Mating	Qualification	Mounting Feature	Orientation	Applications	Primary Material	Connector Type	Shell Material	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions	Cable Opening [custom]	Cable Opening [custom]	Shell Size - Insert
Amphenol Industrial Operations MS3102A36-1S
Amphenol Industrial Operations MS3102A36-7S	Military	-55 °C	125 °C	Environment Resistant	Olive Drab Chromate over Cadmium	Copper Alloy	Unshielded	Neoprene	13 A 23 A	Olive Drab	Silver	MIL-DTL-5015	Flange	N	Marine Military	Metal	Receptacle Female Sockets	Aluminum Alloy	36	7
Amphenol Industrial Operations MS3102A36-1PX
Amphenol Industrial Operations MS3102A36-15S
Amphenol Industrial Operations MS3102A36-16S
Amphenol Industrial Operations MS3102A36-14S
Amphenol Industrial Operations MS3102A36-10SW
Amphenol Industrial Operations MS3102A36-12P
Amphenol Industrial Operations MS3102A36-5P	Military	-55 °C	125 °C	Environment Resistant	Olive Drab Chromate over Cadmium	Copper Alloy	Unshielded	Neoprene	150 A	Olive Drab	Silver	MIL-DTL-5015	Flange	N	Marine Military	Metal	Male Pins Receptacle	Aluminum Alloy	5	36	4
Amphenol Industrial Operations MS3102A36-10P		-55 °C	125 °C		Olive Drab Chromate over Cadmium	Copper Alloy	Unshielded	Neoprene		Olive Drab	Silver	MIL-5015	Flange	N	Marine Military	Metal	Male Pins Receptacle	Aluminum Alloy			48	2.062 in	52.37 mm	36-10

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

47 Position Circular Connector Receptacle, Female Sockets Solder Cup
