UT0W6FC1210PH

Active

Souriau-Sunbank by Eaton

UT0W6FC1210PH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

UT0W6FC1210PH

Active

Souriau-Sunbank by Eaton

UT0W6FC1210PH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT0W6FC1210PH

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Housing Color	Silver
Ingress Protection	IP69K, IP67
Insert Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shielding	Shielded
Type	For Male Pins

UT0W6 Series

Part	Contact Size	Housing Color	Connector Type	Insert Material	Fastening Type	Shielding	Note	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Type	Shell Material	Number of Positions	Ingress Protection	Mounting Type	Orientation	Material Flammability Rating	Contact Type	Features	Shell Finish	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Souriau-Sunbank by Eaton UT0W6FC1210SH	20	Silver	Plug Housing	Thermoplastic Glass Filled	Bayonet Lock	Shielded	Contacts Not Included	Circular	-40 °C	105 ░C	For Female Sockets	Zinc Alloy	10	IP67 IP69K	Free Hanging (In-Line)	N	UL94 V-0	Crimp	Backshell Coupling Nut	Nickel
Souriau-Sunbank by Eaton UT0W61626PH	20	Silver	Plug Housing	Thermoplastic Glass Filled	Bayonet Lock	Shielded	Contacts Not Included	Circular	-40 °C	105 ░C	For Male Pins	Zinc Alloy	26	IP67 IP69K	Free Hanging (In-Line)	N	UL94 V-0	Crimp	Coupling Nut	Nickel	16	26
Souriau-Sunbank by Eaton UT0W6FC1210PH	20	Silver	Plug Housing	Thermoplastic Glass Filled	Bayonet Lock	Shielded	Contacts Not Included	Circular	-40 °C	105 ░C	For Male Pins	Zinc Alloy	10	IP67 IP69K	Free Hanging (In-Line)	N	UL94 V-0	Crimp	Backshell Coupling Nut	Nickel
Souriau-Sunbank by Eaton UT0W61626SH	20	Silver	Plug Housing	Thermoplastic Glass Filled	Bayonet Lock	Shielded	Contacts Not Included	Circular	-40 °C	105 ░C	For Female Sockets	Zinc Alloy	26	IP67 IP69K	Free Hanging (In-Line)	N	UL94 V-0	Crimp	Coupling Nut	Nickel	16	26
Souriau-Sunbank by Eaton UT0W61210PH	20	Silver	Plug Housing	Thermoplastic Glass Filled	Bayonet Lock	Shielded	Contacts Not Included	Circular	-40 °C	105 ░C	For Male Pins	Zinc Alloy	10	IP67 IP69K	Free Hanging (In-Line)	N	UL94 V-0	Crimp	Coupling Nut	Nickel
Souriau-Sunbank by Eaton UT0W6FC2255SH	20	Silver	Plug Housing	Thermoplastic Glass Filled	Bayonet Lock	Shielded	Contacts Not Included	Circular	-40 °C	105 ░C	For Female Sockets	Zinc Alloy	55 positions	IP67 IP69K	Free Hanging (In-Line)	N	UL94 V-0	Crimp	Backshell Coupling Nut	Nickel	22	55
Souriau-Sunbank by Eaton UT0W61210SH	20	Silver	Plug Housing	Thermoplastic Glass Filled	Bayonet Lock	Shielded	Contacts Not Included	Circular	-40 °C	105 ░C	For Female Sockets	Zinc Alloy	10	IP67 IP69K	Free Hanging (In-Line)	N	UL94 V-0	Crimp	Coupling Nut	Nickel
Souriau-Sunbank by Eaton UT0W6FC1626SH	20	Silver	Plug Housing	Thermoplastic Glass Filled	Bayonet Lock	Shielded	Contacts Not Included	Circular	-40 °C	105 ░C	For Female Sockets	Zinc Alloy	26	IP67 IP69K	Free Hanging (In-Line)	N	UL94 V-0	Crimp	Backshell Coupling Nut	Nickel	16	26
Souriau-Sunbank by Eaton UT0W61419PH	20	Silver	Plug Housing	Thermoplastic Glass Filled	Bayonet Lock	Shielded	Contacts Not Included	Circular	-40 °C	105 ░C	For Male Pins	Zinc Alloy	19	IP67 IP69K	Free Hanging (In-Line)	N	UL94 V-0	Crimp	Coupling Nut	Nickel			19	14
Souriau-Sunbank by Eaton UT0W62255PH	20	Silver	Plug Housing	Thermoplastic Glass Filled	Bayonet Lock	Shielded	Contacts Not Included	Circular	-40 °C	105 ░C	For Male Pins	Zinc Alloy	55 positions	IP67 IP69K	Free Hanging (In-Line)	N	UL94 V-0	Crimp	Coupling Nut	Nickel	22	55

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 37.87
Newark	Each	1	$ 59.04
		100	$ 56.68
		500	$ 53.93
		1000	$ 47.69
		2500	$ 45.34
		5000	$ 42.99
		10000	$ 41.70

Description

General part information

UT0W6 Series

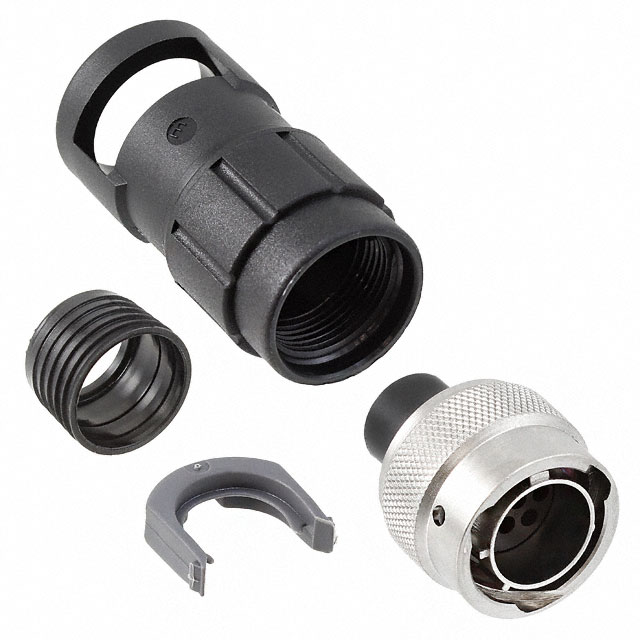

10 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
