UT0W62255PH
ActiveSouriau-Sunbank by Eaton

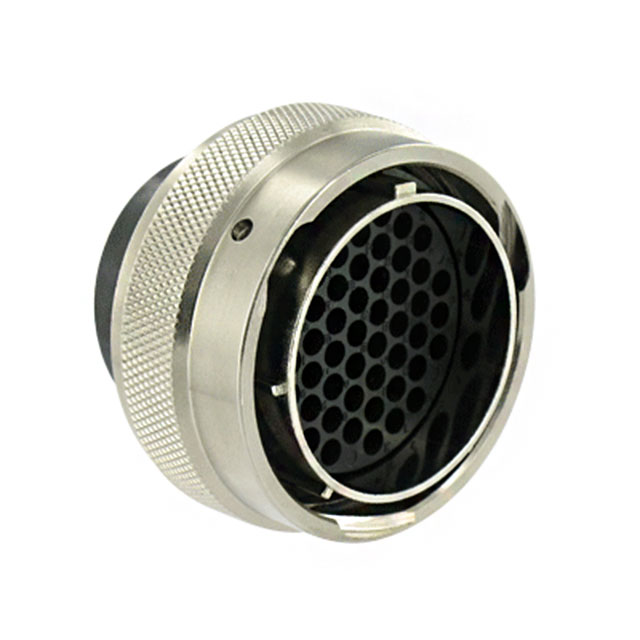

CONN PLUG HSG MALE 55POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UT0W62255PH
ActiveSouriau-Sunbank by Eaton
CONN PLUG HSG MALE 55POS INLINE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UT0W62255PH |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 20 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Housing Color | Silver |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Thermoplastic, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 55 positions |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert [Max] | 55 |
| Shell Size - Insert [Min] | 22 |
| Shielding | Shielded |
| Type | For Male Pins |
UT0W6 Series
| Part | Contact Size | Housing Color | Connector Type | Insert Material | Fastening Type | Shielding | Note | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Type | Shell Material | Number of Positions | Ingress Protection | Mounting Type | Orientation | Material Flammability Rating | Contact Type | Features | Shell Finish | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Shell Size - Insert [Max] [custom] | Shell Size - Insert [Min] [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Souriau-Sunbank by Eaton | 20 | Silver | Plug Housing | Thermoplastic Glass Filled | Bayonet Lock | Shielded | Contacts Not Included | Circular | -40 °C | 105 ░C | For Female Sockets | Zinc Alloy | 10 | IP67 IP69K | Free Hanging (In-Line) | N | UL94 V-0 | Crimp | Backshell Coupling Nut | Nickel | ||||
Souriau-Sunbank by Eaton | 20 | Silver | Plug Housing | Thermoplastic Glass Filled | Bayonet Lock | Shielded | Contacts Not Included | Circular | -40 °C | 105 ░C | For Male Pins | Zinc Alloy | 26 | IP67 IP69K | Free Hanging (In-Line) | N | UL94 V-0 | Crimp | Coupling Nut | Nickel | 16 | 26 | ||
Souriau-Sunbank by Eaton | 20 | Silver | Plug Housing | Thermoplastic Glass Filled | Bayonet Lock | Shielded | Contacts Not Included | Circular | -40 °C | 105 ░C | For Male Pins | Zinc Alloy | 10 | IP67 IP69K | Free Hanging (In-Line) | N | UL94 V-0 | Crimp | Backshell Coupling Nut | Nickel | ||||
Souriau-Sunbank by Eaton | 20 | Silver | Plug Housing | Thermoplastic Glass Filled | Bayonet Lock | Shielded | Contacts Not Included | Circular | -40 °C | 105 ░C | For Female Sockets | Zinc Alloy | 26 | IP67 IP69K | Free Hanging (In-Line) | N | UL94 V-0 | Crimp | Coupling Nut | Nickel | 16 | 26 | ||
Souriau-Sunbank by Eaton | 20 | Silver | Plug Housing | Thermoplastic Glass Filled | Bayonet Lock | Shielded | Contacts Not Included | Circular | -40 °C | 105 ░C | For Male Pins | Zinc Alloy | 10 | IP67 IP69K | Free Hanging (In-Line) | N | UL94 V-0 | Crimp | Coupling Nut | Nickel | ||||
Souriau-Sunbank by Eaton | 20 | Silver | Plug Housing | Thermoplastic Glass Filled | Bayonet Lock | Shielded | Contacts Not Included | Circular | -40 °C | 105 ░C | For Female Sockets | Zinc Alloy | 55 positions | IP67 IP69K | Free Hanging (In-Line) | N | UL94 V-0 | Crimp | Backshell Coupling Nut | Nickel | 22 | 55 | ||
Souriau-Sunbank by Eaton | 20 | Silver | Plug Housing | Thermoplastic Glass Filled | Bayonet Lock | Shielded | Contacts Not Included | Circular | -40 °C | 105 ░C | For Female Sockets | Zinc Alloy | 10 | IP67 IP69K | Free Hanging (In-Line) | N | UL94 V-0 | Crimp | Coupling Nut | Nickel | ||||
Souriau-Sunbank by Eaton | 20 | Silver | Plug Housing | Thermoplastic Glass Filled | Bayonet Lock | Shielded | Contacts Not Included | Circular | -40 °C | 105 ░C | For Female Sockets | Zinc Alloy | 26 | IP67 IP69K | Free Hanging (In-Line) | N | UL94 V-0 | Crimp | Backshell Coupling Nut | Nickel | 16 | 26 | ||
Souriau-Sunbank by Eaton | 20 | Silver | Plug Housing | Thermoplastic Glass Filled | Bayonet Lock | Shielded | Contacts Not Included | Circular | -40 °C | 105 ░C | For Male Pins | Zinc Alloy | 19 | IP67 IP69K | Free Hanging (In-Line) | N | UL94 V-0 | Crimp | Coupling Nut | Nickel | 19 | 14 | ||
Souriau-Sunbank by Eaton | 20 | Silver | Plug Housing | Thermoplastic Glass Filled | Bayonet Lock | Shielded | Contacts Not Included | Circular | -40 °C | 105 ░C | For Male Pins | Zinc Alloy | 55 positions | IP67 IP69K | Free Hanging (In-Line) | N | UL94 V-0 | Crimp | Coupling Nut | Nickel | 22 | 55 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 38.51 | |
Description
General part information
UT0W6 Series
55 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
