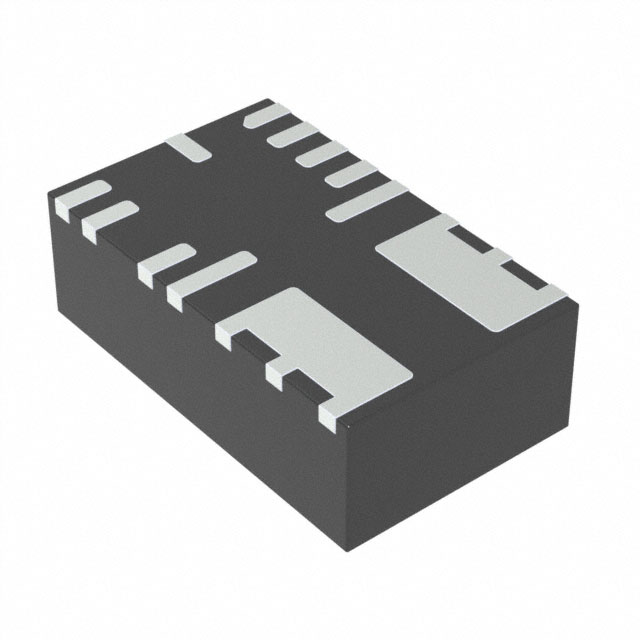

MPM3515GQV-Z
ActiveDC-DC SWITCHING SYNCHRONOUS BUCK REGULATOR, ADJUSTABLE, 4 V TO 36 V IN, 800 MV TO 30.6 V/1.5 A OUT
Deep-Dive with AI
Search across all available documentation for this part.
MPM3515GQV-Z
ActiveDC-DC SWITCHING SYNCHRONOUS BUCK REGULATOR, ADJUSTABLE, 4 V TO 36 V IN, 800 MV TO 30.6 V/1.5 A OUT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM3515GQV-Z |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.5 A |
| Features | OTP, UVLO, OCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 17-PowerLQFN Module |
| Size / Dimension [x] | 0.2 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.12 " |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [z] | 1.6 mm |
| Size / Dimension [z] | 0.06 " |
| Supplier Device Package | 17-QFN (3x5) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Output 1 [Max] | 30 V |
| Voltage - Output 1 [Min] | 0.8 V |
MPM3515 Series
| Part | Current - Output (Max) [Max] | Number of Outputs | Voltage - Input (Min) [Min] | Qualification | Grade | Supplier Device Package | Package / Case | Features | Voltage - Input (Max) [Max] | Type | Applications | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MONOLITHIC POWER SYSTEMS (MPS) | 1.5 A | 1 | 4 V | AEC-Q100 | Automotive | 17-QFN (3x5) | 17-PowerLQFN Module | OCP OTP UVLO | 36 V | Non-Isolated PoL Module | ITE (Commercial) | Surface Mount | 125 °C | -40 °C | 1.6 mm | 0.12 " | 0.2 in | 3 mm | 0.06 " | 5 mm | 30 V | 0.8 V |
MONOLITHIC POWER SYSTEMS (MPS) | 1.5 A | 1 | 4 V | AEC-Q100 | Automotive | 17-QFN (3x5) | 17-PowerLQFN Module | OCP OTP UVLO | 36 V | Non-Isolated PoL Module | ITE (Commercial) | Surface Mount Wettable Flank | 125 °C | -40 °C | 1.6 mm | 0.12 " | 0.2 in | 3 mm | 0.06 " | 5 mm | 30 V | 0.8 V |
MONOLITHIC POWER SYSTEMS (MPS) | 1.5 A | 1 | 4 V | 17-QFN (3x5) | 17-PowerLQFN Module | OCP OTP UVLO | 36 V | Non-Isolated PoL Module | ITE (Commercial) | Surface Mount | 125 °C | -40 °C | 1.6 mm | 0.12 " | 0.2 in | 3 mm | 0.06 " | 5 mm | 30 V | 0.8 V | ||
MONOLITHIC POWER SYSTEMS (MPS) | 1.5 A | 1 | 4 V | 17-QFN (3x5) | 17-PowerLQFN Module | OCP OTP UVLO | 36 V | Non-Isolated PoL Module | ITE (Commercial) | Surface Mount | 125 °C | -40 °C | 1.6 mm | 0.12 " | 0.2 in | 3 mm | 0.06 " | 5 mm | 30 V | 0.8 V | ||
MONOLITHIC POWER SYSTEMS (MPS) | 1.5 A | 1 | 4 V | AEC-Q100 | Automotive | 17-QFN (3x5) | 17-PowerLQFN Module | OCP OTP UVLO | 36 V | Non-Isolated PoL Module | ITE (Commercial) | Surface Mount Wettable Flank | 125 °C | -40 °C | 1.6 mm | 0.12 " | 0.2 in | 3 mm | 0.06 " | 5 mm | 30 V | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.43 | |
| 10 | $ 4.88 | |||
| 25 | $ 4.61 | |||
| 100 | $ 4.00 | |||
| 250 | $ 3.79 | |||
| 500 | $ 3.40 | |||
| 1000 | $ 2.87 | |||
| Digi-Reel® | 1 | $ 5.43 | ||
| 10 | $ 4.88 | |||
| 25 | $ 4.61 | |||
| 100 | $ 4.00 | |||
| 250 | $ 3.79 | |||
| 500 | $ 3.40 | |||
| 1000 | $ 2.87 | |||
| Tape & Reel (TR) | 2500 | $ 2.73 | ||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 8.23 | |
| 10 | $ 5.37 | |||
| 25 | $ 5.15 | |||
| 50 | $ 4.92 | |||
| 100 | $ 4.71 | |||
| 250 | $ 4.37 | |||
| 500 | $ 4.17 | |||
| 1000 | $ 4.16 | |||
Description
General part information
MPM3515 Series
MPM3515 is a synchronous, rectified, stepdown converter with built-in power MOSFETs, inductors and capacitors. The MPM3515 offers a very compact solution and requires only four external components to achieve 1.5A of continuous output current with excellent load and line regulation over a wide input supply range. The MPM3515 operates with a 2.2MHz switching frequency to achieve a fast load transient response. Full protection features include overcurrent protection (OCP) and thermal shutdown. The MPM3515 eliminates design and manufacturing risks while improving the time t market dramatically. The MPM3515 is available in a space-saving QFN-17 (3mmx5mmx1.6mm) package. Applications include industrial controls, automotive. medical and imaging equipment, telecom applications and distributed power systems.
