MPM3515GQVE-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC DC CONVERTER 0.8-30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MPM3515GQVE-AEC1-Z
ActiveMONOLITHIC POWER SYSTEMS (MPS)
DC DC CONVERTER 0.8-30V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MPM3515GQVE-AEC1-Z |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 1.5 A |
| Features | OTP, UVLO, OCP |
| Grade | Automotive |
| Mounting Type | Wettable Flank, Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |

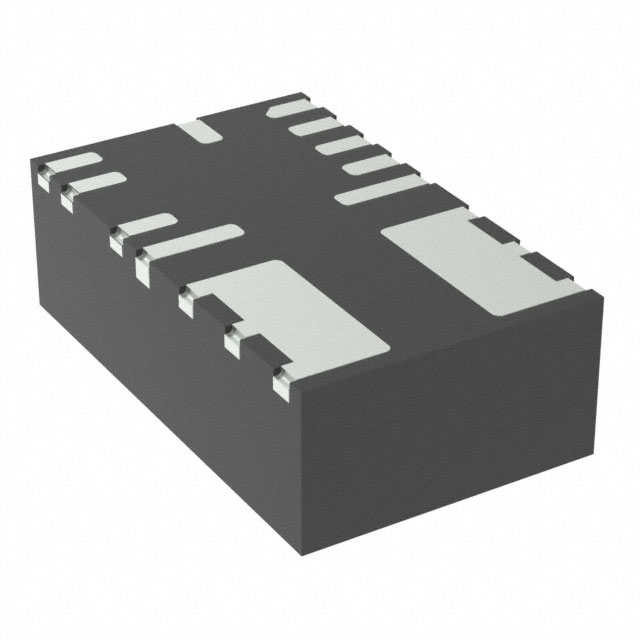

| Package / Case | 17-PowerLQFN Module |
| Qualification | AEC-Q100 |
| Size / Dimension [x] | 0.2 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.12 " |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [z] | 1.6 mm |
| Size / Dimension [z] | 0.06 " |
| Supplier Device Package | 17-QFN (3x5) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Output 1 [Max] | 30 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.30 | |
| 10 | $ 5.57 | |||
| 25 | $ 4.86 | |||
| 100 | $ 4.06 | |||
| 250 | $ 3.66 | |||
| 500 | $ 3.56 | |||
| Digi-Reel® | 1 | $ 8.30 | ||
| 10 | $ 5.57 | |||
| 25 | $ 4.86 | |||
| 100 | $ 4.06 | |||
| 250 | $ 3.66 | |||
| 500 | $ 3.56 | |||
| Tape & Reel (TR) | 2500 | $ 3.56 | ||
Description
General part information
MPM3515 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 30V 1.5A 4V - 36V Input
