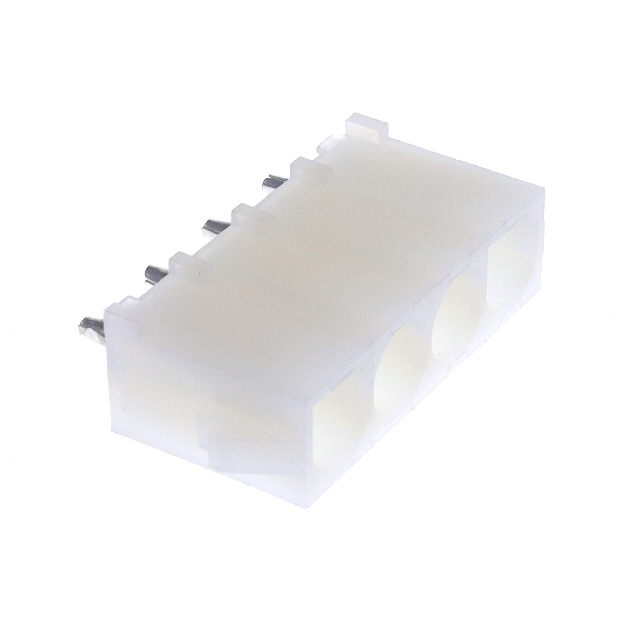

DME-04-S-S

Active

Adam Tech

WIRE TO BOARD FEMALE 6.35 MM SINGLE ROW

Search across all available documentation for this part.

Active

Adam Tech

WIRE TO BOARD FEMALE 6.35 MM SINGLE ROW

Technical Specifications

Parameters and characteristics for this part

Specification	DME-04-S-S

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.177 in
Contact Length - Post	4.5 mm
Contact Material	Brass
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	13 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.55 in
Insulation Height	13.97 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Termination	Solder
Voltage Rating	600 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Mounting Type	Termination	Contact Material	Voltage Rating	Insulation Material	Number of Rows	Insulation Color	Applications	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions	Number of Positions Loaded	Contact Type	Current Rating (Amps)	Contact Shape	Fastening Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Shrouding	Style	Features
Adam Tech DME-04-S-S	-25 °C	85 °C	Tin	Through Hole	Solder	Brass	600 VAC	Polyamide (PA66) Nylon 6/6	1	Natural	General Purpose	6.35 mm	0.25 in	Receptacle	4	All	Female Socket	13 A	Circular	Locking Ramp	0.55 in	13.97 mm	0.177 in	4.5 mm	UL94 V-2
Adam Tech DME-04-S2-S	-40 °C	105 ░C	Tin	Through Hole	Solder	Phosphor Bronze		Polyamide (PA66) Nylon 6/6	1	Natural		6.35 mm	0.25 in	Header	4	All	Male Pin	12 A	Circular	Locking Ramp	0.581 in	14.76 mm	0.157 in	4 mm	UL94 V-2	Shrouded - 4 Wall	Board to Cable/Wire
Adam Tech DME-04-S-P-S	-25 °C	85 °C	Tin	Through Hole	Solder	Phosphor Bronze	600 VAC	Polyamide (PA66) Nylon 6/6	1	Natural	General Purpose	6.35 mm	0.25 in	Receptacle	4	All	Female Socket	13 A	Circular	Locking Ramp	0.55 in	13.97 mm	0.177 in	4.5 mm	UL94 V-2			Board Guide

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.52
