DME-04-S-P-S

Active

Adam Tech

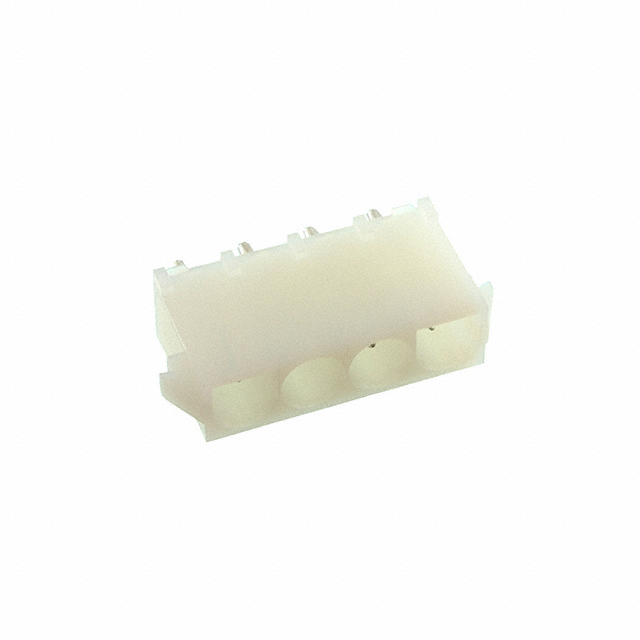

6.35MM PCB HEADER, 4 POSITION

Search across all available documentation for this part.

Active

Adam Tech

6.35MM PCB HEADER, 4 POSITION

Technical Specifications

Parameters and characteristics for this part

Specification	DME-04-S-P-S

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Length - Post	0.177 in
Contact Length - Post	4.5 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Female Socket
Current Rating (Amps)	13 A
Fastening Type	Locking Ramp
Features	Board Guide
Insulation Color	Natural
Insulation Height	0.55 in
Insulation Height	13.97 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating	6.35 mm
Pitch - Mating	0.25 in
Termination	Solder
Voltage Rating	600 VAC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Mounting Type	Termination	Contact Material	Voltage Rating	Insulation Material	Number of Rows	Insulation Color	Applications	Pitch - Mating	Pitch - Mating	Connector Type	Number of Positions	Number of Positions Loaded	Contact Type	Current Rating (Amps)	Contact Shape	Fastening Type	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Shrouding	Style	Features
Adam Tech DME-04-S-S	-25 °C	85 °C	Tin	Through Hole	Solder	Brass	600 VAC	Polyamide (PA66) Nylon 6/6	1	Natural	General Purpose	6.35 mm	0.25 in	Receptacle	4	All	Female Socket	13 A	Circular	Locking Ramp	0.55 in	13.97 mm	0.177 in	4.5 mm	UL94 V-2
Adam Tech DME-04-S2-S	-40 °C	105 ░C	Tin	Through Hole	Solder	Phosphor Bronze		Polyamide (PA66) Nylon 6/6	1	Natural		6.35 mm	0.25 in	Header	4	All	Male Pin	12 A	Circular	Locking Ramp	0.581 in	14.76 mm	0.157 in	4 mm	UL94 V-2	Shrouded - 4 Wall	Board to Cable/Wire
Adam Tech DME-04-S-P-S	-25 °C	85 °C	Tin	Through Hole	Solder	Phosphor Bronze	600 VAC	Polyamide (PA66) Nylon 6/6	1	Natural	General Purpose	6.35 mm	0.25 in	Receptacle	4	All	Female Socket	13 A	Circular	Locking Ramp	0.55 in	13.97 mm	0.177 in	4.5 mm	UL94 V-2			Board Guide
