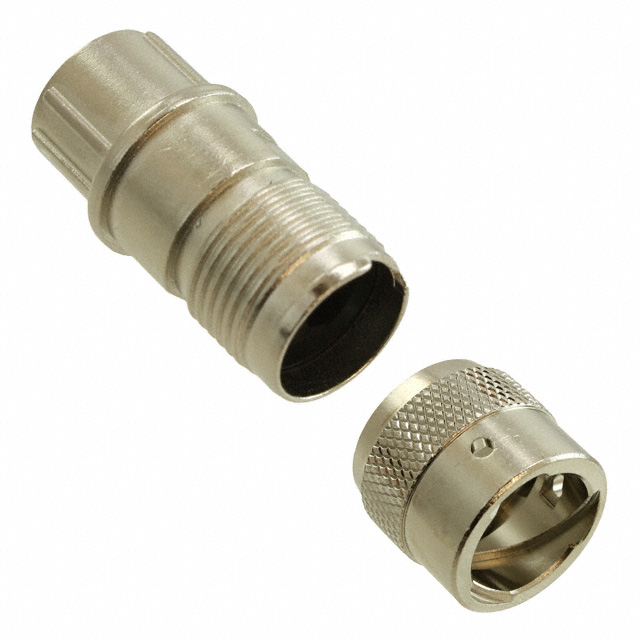

TNM6U10-0004S1L
ActiveITT Cannon, LLC
CIRCULAR CONNECTOR, TRIDENT NEPTUNE METAL SERIES, STRAIGHT PLUG, 4 CONTACTS
Deep-Dive with AI
Search across all available documentation for this part.
TNM6U10-0004S1L
ActiveITT Cannon, LLC
CIRCULAR CONNECTOR, TRIDENT NEPTUNE METAL SERIES, STRAIGHT PLUG, 4 CONTACTS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TNM6U10-0004S1L |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Type | Crimp and Solder Cup |
| Fastening Type | Detent Lock |
| Features | Coupling Nut |
| Housing Color | Silver |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 10-0004 |
| Shielding | Shielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.06 | |
| 10 | $ 18.44 | |||
| 25 | $ 17.64 | |||
| 50 | $ 17.07 | |||
| 100 | $ 16.50 | |||
| 250 | $ 15.59 | |||
| 500 | $ 15.14 | |||
Description
General part information
TNM6U Series
4 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
