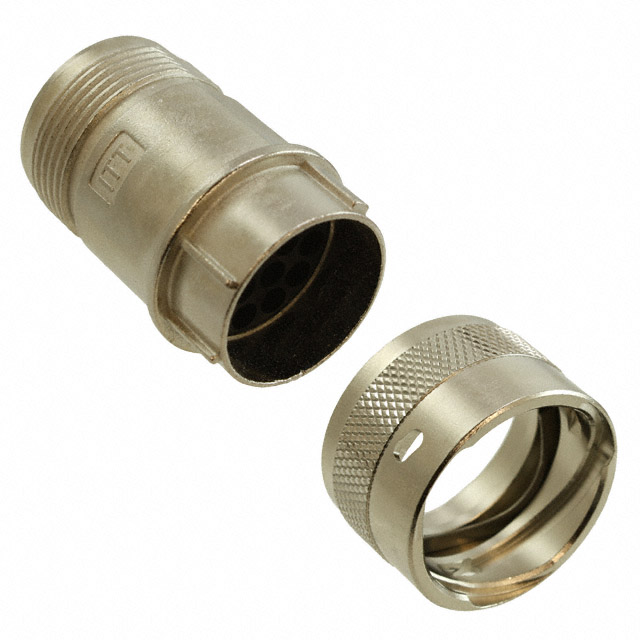

TNM6U16-0019P1L - 192993-0004

TNM6U16-0019P1L

Active
ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT NEPTUNE METAL SERIES, STRAIGHT PLUG, 19 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+1
TNM6U16-0019P1L - 192993-0004

TNM6U16-0019P1L

Active
ITT Cannon, LLC

CIRCULAR CONNECTOR, TRIDENT NEPTUNE METAL SERIES, STRAIGHT PLUG, 19 CONTACTS

Deep-Dive with AI

DocumentsDatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationTNM6U16-0019P1L
Connector TypePlug Housing
Contact ShapeCircular
Contact TypeCrimp and Solder Cup
Fastening TypeDetent Lock
FeaturesCoupling Nut
Housing ColorSilver
Insert MaterialNylon, Polyamide (PA)
Material Flammability RatingUL94 V-0
Mounting TypeFree Hanging (In-Line)
NoteContacts Not Included
Number of Positions19
Operating Temperature [Max]105 ░C
Operating Temperature [Min]-55 °C
Shell FinishNickel
Shell MaterialZinc Alloy
Shell Size - Insert16-0019
ShieldingShielded
TypeFor Male Pins

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 22.38
10$ 19.02
25$ 17.83
50$ 16.98
100$ 16.91
NewarkEach 25$ 16.83

Description

General part information

TNM6U Series

19 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
