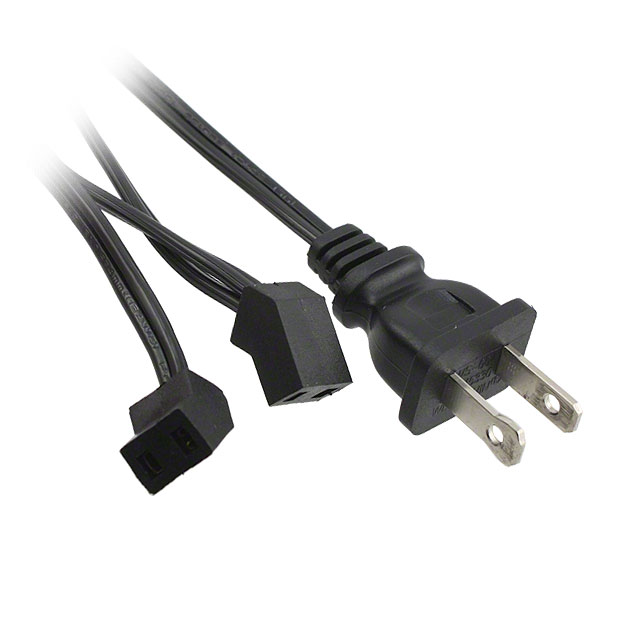

C45-2DC-144P

Active

Orion Fans

45 DEGREE, 2 HEADS, 144IN LEAD WITH PLUG, 10A 125/250VAC

Search across all available documentation for this part.

Active

Orion Fans

45 DEGREE, 2 HEADS, 144IN LEAD WITH PLUG, 10A 125/250VAC

Technical Specifications

Parameters and characteristics for this part

Specification	C45-2DC-144P

1st Connector	Fan Terminal Receptacle 45° (2)
2nd Connector	NEMA 1-15 Plug
Approval Agency Marking	cURus, TUV
Cord Type	SPT-1
Features	Daisy Chain
Number of Conductors	2
Style	Female Receptacle to Male Plug
Wire Gauge	18 AWG

Part	Features	Wire Gauge	Length	Length	Style	1st Connector	Approval Agency Marking	Number of Conductors	2nd Connector	Cord Type	Length [x]	Length [x]
Orion Fans C45-2DC-72P	Daisy Chain	18 AWG	72 in	1.83 m	Female Receptacle to Male Plug	Fan Terminal Receptacle 45° (2)	cURus TUV	2	NEMA 1-15 Plug	SPT-1
Orion Fans C45-2DC-84	Daisy Chain	18 AWG			Female Receptacle to Cable	Fan Terminal Receptacle 45° (2)	cURus TUV	2	Open Wires	SPT-1	84 "	2.13 m
Orion Fans C45-2DC-24	Daisy Chain	18 AWG		304.8 mm	Female Receptacle to Cable	Fan Terminal Receptacle 45° (2)	cURus TUV	2	Open Wires	SPT-1	12 in
Orion Fans C45-2DC24-72P	Daisy Chain	18 AWG	72 in	1.83 m	Female Receptacle to Male Plug	Fan Terminal Receptacle 45° (2)	cURus TUV	2	NEMA 1-15 Plug	SPT-1
Orion Fans C45-2DC-144P	Daisy Chain	18 AWG			Female Receptacle to Male Plug	Fan Terminal Receptacle 45° (2)	cURus TUV	2	NEMA 1-15 Plug	SPT-1
Orion Fans C45-2DC-24P	Daisy Chain	18 AWG			Female Receptacle to Male Plug	Fan Terminal Receptacle 45° (2)	cURus TUV	2	NEMA 1-15 Plug	SPT-1	24 in	609.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.35
Newark	Each	1	$ 8.40
		1000	$ 7.70

General part information

Fan Power Cord Fan Terminal Receptacle 45° (2) 144.0" (3.66m) NEMA 1-15 Plug
